How can I get a price quote for Enerpac RC7513?

You can request a fast quote for Enerpac RC7513 from Yılsa Engineering. Reference part number CEY-8EF3B033E9BC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RC7513 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RC7513 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RC7513?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

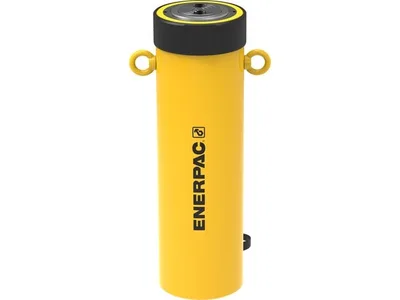

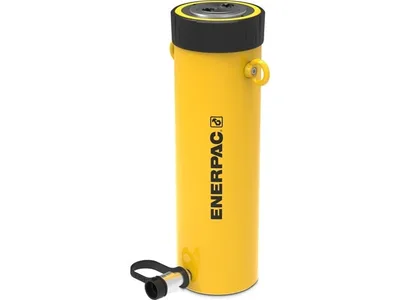

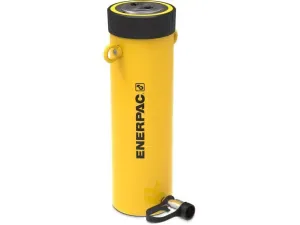

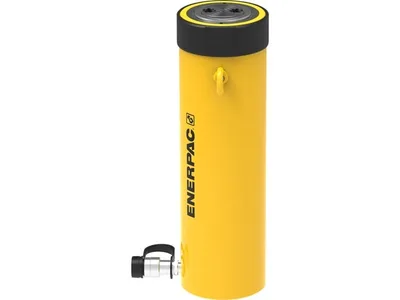

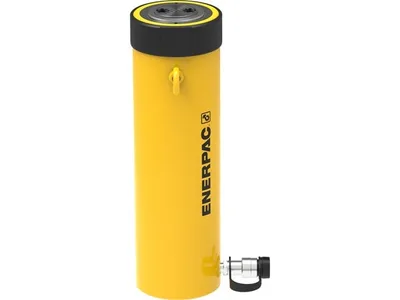

Enerpac RC7513 79.5 ton Hydraulic Cylinder

Enerpac RC7513; 79.5 ton capacity, 333 mm stroke, single-acting spring return general purpose hydraulic cylinder.

EnerpacMFR # RC7513SKU # CEY-8EF3B033E9BC

Cylinder Class75 ton

Stroke333 mm (13.13 in)

Collapsed Height (A)492 mm (19.38 in)

Outside Diameter D146 mm (5.75 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U114 mm (4.5 in)

Have questions?Chat on WhatsApp

About This Product

RC7513 is a single-acting, spring return general purpose hydraulic cylinder from the RC series. It offers 79.5 ton capacity and 333 mm stroke, and is intended for lifting and pushing applications. Collapsed height is 492 mm, outside diameter 146 mm, base mounting hole bolt circle 114 mm and collar thread 5 3/4" - 12 UN. Weight is 59 kg and the surface is painted. The cylinder can be used in any position. The RC-TRIO design includes a bearing system with composite wear bands and a pre-tensioned hybrid spring. It is used for lifting and pushing work and includes a CR400 coupler and dust cap.

Features and Benefits

79.5 ton capacity, 333 mm stroke
Bearing system with composite wear bands for sideload resistance
Trio hybrid pre-tensioned spring for faster retraction
High-grade polyethylene seals; plunger wiper reduces contamination
Collar threads and base mounting holes for easy fixturing
Includes CR400 coupler and dust cap; usable in all positions

Enerpac RC7513

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class75 ton

Stroke333 mm (13.13 in)

Collapsed Height (A)492 mm (19.38 in)

Outside Diameter D146 mm (5.75 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U114 mm (4.5 in)

Collar Thread (W)5 3/4" - 12 UN

Surface TreatmentPaint

Weight59,0 kg (130 lbs)

Oil Capacity (Advance)3417 cm³ (208.74 in³)

Base Mounting Holes Thread Depth Z16 mm (0.63 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V5/8"-11 UNC

Maximum Cylinder Capacity (Advance)718 kN (79.5 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)114,3 mm (4.5 in)

Product TypeGeneral Purpose Cylinder

SeriesRC

Plunger Internal ThreadN/A

Base to Advance Port H30 mm (1.19 in)

Model Type79.5 Ton Capacity, 13.13 in. Stroke

Optional Tilt Saddle Diameter (J1)2.81 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J71 mm (2.8 in)

Country of OriginChina

Collar Thread Length (X)44 mm (1.75 in)

Saddle Diameter J171 mm

Extended Height (B)825 mm (32.5 in)

Cylinder Effective Area (Advance)102,6 cm² (15.9 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)15 mm (0.59 in)

Saddle Protrusion from Plunger K2 mm (0.11 in)

Saddle Protrusion from Plunger K12 mm

Plunger Thread Length (P)N/A mm

Plunger Diameter F95,3 mm (3.75 in)

Documents & CAD

For this product 3

Repair Parts SheetRC Duo Hydraulic Cylinders RPSPDF·339 KB·English

Repair Parts SheetRC75 Series Hydraulic Cylinders RPSPDF·593 KB·English

2D DrawingRC7513 drawingPDF·123 KB

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetCylinder - 75 TonPDF·159 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·260 KB·English

BrochureRC-Series General Purpose Cylinders; EnglishPDF·591 KB

CAD Files 3

3D Model
