Enerpac RAL10010 100 ton Aluminum Cylinder

Enerpac RAL10010; 100 ton (889.6 kN) capacity, 254 mm (10 in) stroke, single-acting aluminum locknut hydraulic cylinder rated up to 700 bar.

EnerpacMFR # RAL10010SKU # YLSNMNW29UUGLQE

Required Oil Capacity3318,4 cm³ (202.5 in³)

Base to Port Centerline F38,1 mm (1.5 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeAluminum Locknut Cylinder

Piston Outside Diameter E108 mm (4.25 in)

SeriesRAL

Have questions?Chat on WhatsApp

About This Product

RAL10010 is part of the Simplex RAL series of aluminum locknut hydraulic cylinders. It is a single-acting, spring-return cylinder with 100 ton (889.6 kN) capacity and 254 mm (10 in) stroke. Maximum operating pressure is 700 bar (10,000 psi). Collapsed height is 416.1 mm, extended height 670.1 mm, body outside diameter 203.2 mm, bore diameter 130.3 mm and effective area 133.4 cm². Required oil capacity is 3318.4 cm³ and weight is approx. 37.2 kg (82 lb). The hard anodized aluminum body weighs roughly half as much as an equivalent steel cylinder. The lock nut allows the load to be held mechanically for extended periods. A carrying handle, stop rings and a wiper are included. It is used in industrial maintenance, installation, lifting and pushing applications where portability matters.

Features and Benefits

Approximately half the weight of steel cylinders
Lock nut for mechanical load holding for extended periods
Heavy duty spring delivers fast and full retraction
Hard anodized coating reduces wear and corrosion
Stop rings prevent piston blow-out; wiper protects the inner cylinder from dirt
Meets ANSI/ASME B30.1; load tested at 125% of nominal capacity

Enerpac RAL10010

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Required Oil Capacity3318,4 cm³ (202.5 in³)

Base to Port Centerline F38,1 mm (1.5 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeAluminum Locknut Cylinder

Piston Outside Diameter E108 mm (4.25 in)

SeriesRAL

Pressure at Capacity667 bar (9671 psi)

Model Type100 Imperial Ton Capacity, 10 in. Stroke

Product LineHydraulic Tools

Weight37,2 kg (82.0 lbs)

Cylinder Class100 ton

Country of OriginCanada

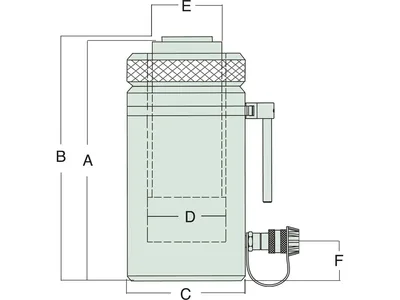

Body Outside Diameter (C)203,2 mm (8 in)

Cylinder Effective Area133,4 cm² (20.68 in²)

Extended Height (B)670,1 mm (26.38 in)

Capacity889,6 kN (100 ton)

Plunger TypeSolid

Collapsed Height (A)416.1 mm (16.38 in)

Cylinder Bore Diameter D130,3 mm (5.13 in)

Cylinder MaterialAluminum

Stroke254 mm (10.00 in)

Return TypeSingle-Acting, Spring Return
