How can I get a price quote for Enerpac RA1061?

You can request a fast quote for Enerpac RA1061 from Yılsa Engineering. Reference part number CEY-937FC77C67EE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RA1061 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RA1061 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RA1061?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

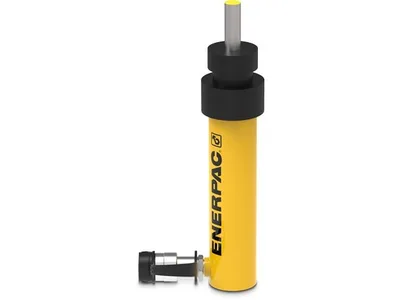

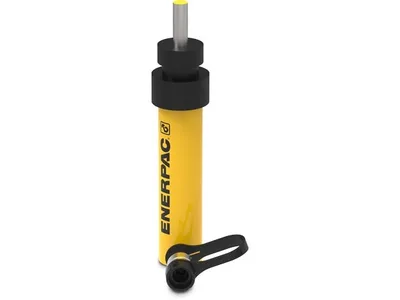

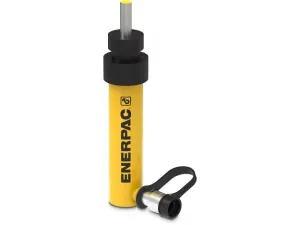

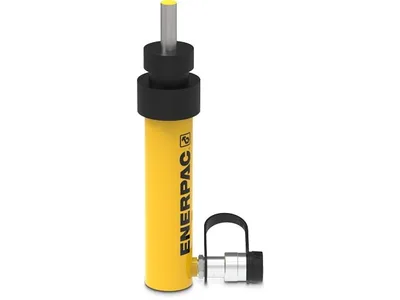

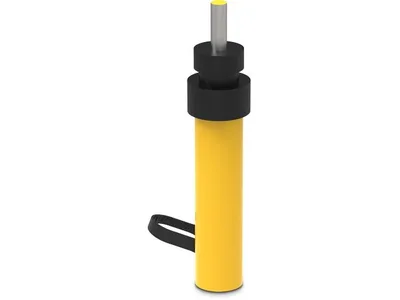

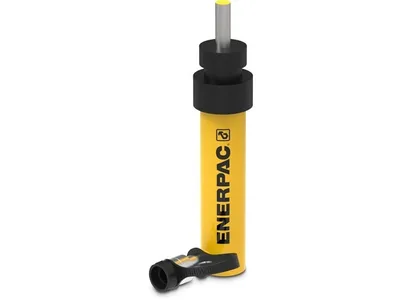

Enerpac RA1061 activator wand

Enerpac RA1061; 162.2 cm³ oil volume per stroke, 112.7 mm stroke, 60–700 bar operating pressure, activator wand for workholding systems.

EnerpacMFR # RA1061SKU # CEY-937FC77C67EE

Effective Area14,4 cm² (2.23 in²)

Dimension E19,1 mm (0.75 in)

Country of OriginUnited States

Dimension F58,9 mm (2.32 in)

Dimension D57,2 mm (2.25 in)

Dimension J138,9 mm (1.53 in)

Have questions?Chat on WhatsApp

About This Product

RA1061 is an activator wand in the Enerpac workholding product range. Oil volume per stroke is 162.2 cm³ (9.9 in³), stroke is 112.7 mm and effective area is 14.4 cm². Operating pressure ranges from 60 bar (800 psi) to 700 bar (10,000 psi). RA1061 is placed into the B81 or B171 receiver booster; mechanical transfer of force from the activator wand plunger to the booster piston provides oil flow to the system. In palletized no-leak systems it prevents oil loss at the connection point. The closed design keeps machining chips and coolant out of the hydraulic circuit.

Features and Benefits

No-leak palletized system eliminates oil loss at the connection point
Closed design prevents machining chips and coolant from entering the hydraulic circuit
Used with B81 or B171 receiver booster
162.2 cm³ oil volume per stroke, 112.7 mm stroke

Enerpac RA1061

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Effective Area14,4 cm² (2.23 in²)

Dimension E19,1 mm (0.75 in)

Country of OriginUnited States

Dimension F58,9 mm (2.32 in)

Dimension D57,2 mm (2.25 in)

Dimension J138,9 mm (1.53 in)

Dimension C4,8 mm (0.19 in)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B117,6 mm (4.63 in)

Oil Volume per Stroke162,2 cm³ (9.90 in³)

Minimum Operating Pressure60 bar (800 psi)

Dimension J76,7 mm (3.02 in)

Dimension H19,1 mm (0.75 in)

Product TypeActivator Wand

SeriesRA

Dimension D176,2 mm (3.00 in)

Stroke112.7 mm (4.44 in)

Dimension A295,1 mm (11.62 in)

Dimension S69,9 mm (2.75 in)

Product LineWorkholding Tools

Weight5,1 kg (11.3 lbs)

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualBooster & WandPDF·1.3 MB·English

Repair Parts SheetWand and BoosterPDF·157 KB·English

BrochureWorkholding Power Sources, EnglishPDF·2.9 MB

CAD Files 3

3D Model
