How can I get a price quote for Enerpac PTSS121?

You can request a fast quote for Enerpac PTSS121 from Yılsa Engineering. Reference part number CEY-55221B11AAB2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PTSS121 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PTSS121 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PTSS121?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

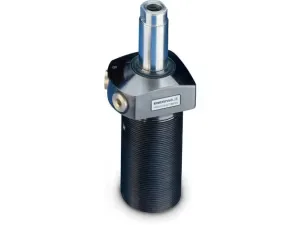

Enerpac PTSS121 13.3 kN Pull Cylinder

Enerpac PTSS121; 13.3 kN (2950 lbs) pull capacity, 27.9 mm (1.10 in) stroke, 5,000 psi maximum pressure, single-acting threaded-body hydraulic pull cylinder.

EnerpacMFR # PTSS121SKU # CEY-55221B11AAB2

Dimension N25,1 mm (0.99 in)

Dimension E22,1 mm (0.87 in)

Maximum Cylinder Capacity (Retract)13,3 kN (2950 lbs)

Dimension V8,8 mm (0.35 in)

Diameter D273,2 mm (2.88 in)

Dimension P9,4 mm (0.37 in)

Have questions?Chat on WhatsApp

About This Product

PTSS121 is a single-acting, threaded-body hydraulic cylinder from the Enerpac PT series of workholding pull cylinders. Pull capacity is 13.3 kN (2950 lbs) with a 27.9 mm (1.10 in) stroke. Operating pressure ranges from 500 to 5,000 psi (approx. 34 – 345 bar). The body and the oil port are threaded, so the cylinder can be screwed directly into the fixture and secured with standard flange nuts. Body diameter (D2) is 73.2 mm, dimension A 160.3 mm, connection thread .500-20 UNF and weight about 1.6 kg (3.5 lbs). It is used for pull applications in machine fixtures, clamping setups and workpiece holding systems.

Features and Benefits

Threaded body mounting
Body thread allows precise cylinder height positioning
Threaded oil port connection
Threads directly into the fixture and is secured with standard flange nuts
Single-acting: 13.3 kN pull capacity, 27.9 mm stroke

Enerpac PTSS121

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N25,1 mm (0.99 in)

Dimension E22,1 mm (0.87 in)

Maximum Cylinder Capacity (Retract)13,3 kN (2950 lbs)

Dimension V8,8 mm (0.35 in)

Diameter D273,2 mm (2.88 in)

Dimension P9,4 mm (0.37 in)

Dimension T19,1 mm (0.75 in)

ApplicationsPull

Dimension K.500-20 UNF mm

Minimum Operating Pressure500 psi

Oil Capacity (Retract)11,47 cm³

Product TypeWorkholding Pull Cylinder

Maximum Operating Pressure5,000 psi

SeriesPT

Dimension E120,8 in

Dimension X0.717 in

Dimension C125,4 mm (1 in)

Dimension A160,3 mm (6.31 in)

Product LineWorkholding Tools

Weight1,6 kg (3.5 lbs)

Dimension D166,5 mm (2.62 in)

Country of OriginUnited States

Dimension F17,3 mm (0.68 in)

Dimension D47,5 mm (1.87 in)

Cylinder Effective Area (Advance)0.63 in²

Cylinder Effective Area (Retract)1,81 cm²

Dimension U63,5 mm (2.5 in)

Dimension B132,3 mm (5.21 in)

Plunger TypeSolid

Cylinder MaterialSteel

Dimension H15,5 mm (0.61 in)

Stroke27,9 mm (1.1 in)

Dimension W85,9 mm (3.38 in)

Oil Capacity (Advance)0.7 in³

Dimension S52,0 mm (2.048 in)

Return TypeSingle-Acting, Spring Return

Mounting StyleThreaded Body

Documents & CAD

Series documents 3· shared by this product series

Repair Parts Sheet12 kN Swing Cylinders RPSPDF·221 KB·English

Repair Parts SheetCylinderPDF·597 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
