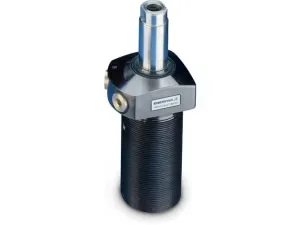

Enerpac PTSD351

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac PTSD351 9600 lbs Hydraulic Pull Cylinder

Enerpac PTSD351; 9600 lbs (≈42.7 kN) pull capacity, 1.2 in (30.5 mm) stroke, 350 bar, double-acting threaded body hydraulic pull cylinder.

EnerpacMFR # PTSD351SKU # CEY-55221B12D8EC
Dimension N1.71 in
Dimension E1.5 in
Maximum Cylinder Capacity (Retract)9600 lbs
Dimension P0.51 in
Maximum Operating Pressure350 bar (5,000 psi)
Diameter D22.88 in
Share
Have questions?Chat on WhatsApp

About This Product

PTSD351 is a double-acting, threaded body hydraulic pull cylinder for workholding applications. Pull capacity is 9600 lbs (≈42.7 kN), push capacity is 18400 lbs (≈81.9 kN), stroke is 1.2 in (30.5 mm), and maximum operating pressure is 350 bar (5,000 psi). The body is steel with a solid plunger; weight is 10.4 lbs (≈4.7 kg) and country of origin is the United States. With its threaded body and threaded oil port, the cylinder can be screwed directly into the fixture and secured with standard flange nuts. The body thread allows precise adjustment of cylinder height. It is used for holding and clamping parts in machining fixtures.

Features and Benefits

  • Threaded body mounting
  • Body thread for precise cylinder height positioning
  • Threaded oil port connection
  • Can be threaded directly into the fixture and secured with standard flange nuts
  • Steel body, solid plunger; 350 bar operating pressure

Enerpac PTSD351

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Dimension N1.71 in
Dimension E1.5 in
Maximum Cylinder Capacity (Retract)9600 lbs
Dimension P0.51 in
Maximum Operating Pressure350 bar (5,000 psi)
Diameter D22.88 in
Oil Capacity (Retract)4.35 in³
ApplicationsPush, Pull
Minimum Operating Pressure500 psi
Product TypeWorkholding Pull Cylinder
SeriesPT
Dimension V0.43 in
Dimension E11.42 in
Dimension X1.637 in
Dimension C10.98 in
Dimension A8.04 in
Dimension R1.02 in
Product LineWorkholding Tools
Weight10.4 lbs
Dimension T1.22 in
Maximum Cylinder Capacity (Advance)18400 lbs
Country of OriginUnited States
Dimension D3.14 in
Cylinder Effective Area (Advance)1.92 in²
Dimension B6.83 in
Plunger TypeSolid
Cylinder Effective Area (Retract)3.68 in²
Cylinder MaterialSteel
Dimension H0.61 in
Dimension F1.13 in
Dimension D13.5 in
Stroke1.2 in
Dimension W3.8 in
Dimension KM16 x 2.00 in
Oil Capacity (Advance)2.27 in³
Return TypeDouble-Acting, Hydraulic Return
Dimension S1.356 in
Mounting StyleThreaded Body
Dimension U2.76 in

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualPull CylinderPDF·470 KB·English
Repair Parts Sheet35 kN Swing CylindersPDF·441 KB·English
Repair Parts Sheet35 kN Pull CylindersPDF·512 KB·English
Repair Parts SheetSwing CylinderPDF·384 KB·English
BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5
