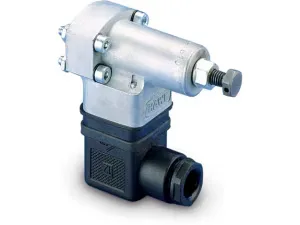

Enerpac PSCK8 100–350 bar Electrical Pressure Switch

Enerpac PSCK8; 100–350 bar (1,450–5,000 psi) adjustable range, manifold-mount electrical pressure switch rated 115 VAC at 2 A.

EnerpacMFR # PSCK8SKU # CEY-7B4B2D990CE1

Country of OriginGermany

Maximum Oil Flow7 l/min

Maximum Operating Pressure350 bar (7,500 psi)

Deadband18 - 35 bar (261 - 501 psi)

Max. Oil Flow427 in³/min

Minimum Operating Pressure100 bar (500 psi)

Have questions?Chat on WhatsApp

About This Product

The PSCK8 is a manifold-mount electrical pressure switch from the Enerpac PSCK series. It monitors pressure changes in the hydraulic system and opens or closes its electrical contacts when the preset pressure is reached. The signal can be used to control the pump or other peripheral devices. The adjustable range is 100–350 bar (1,450–5,000 psi) with a maximum operating pressure of 350 bar. Deadband is 18–35 bar (261–501 psi) and switch point repeatability is ±2% of range. The electrical rating is 115 VAC, 50/60 Hz at 2 A. Maximum oil flow is 7 L/min and weight is 0.4 kg. Its compact design minimizes space requirements on the fixture. It is used in workholding systems for reliable electrical control of hydraulic power.

Features and Benefits

Opens or closes electrical contacts when the preset pressure is reached
100–350 bar (1,450–5,000 psi) adjustable pressure range
Lockable adjustment screw
Signal can be used to control the pump or other peripheral devices
Compact design minimizes space requirements on the fixture
Switch point repeatability of ±2% of range

Enerpac PSCK8

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginGermany

Maximum Oil Flow7 l/min

Maximum Operating Pressure350 bar (7,500 psi)

Deadband18 - 35 bar (261 - 501 psi)

Max. Oil Flow427 in³/min

Minimum Operating Pressure100 bar (500 psi)

Oil PortManifold mount

Adjustable Pressure Range100 - 350 bar (1,450 - 5,000 psi)

Product LineWorkholding Tools

Weight0,4 kg (0.8 lbs)

Switch Point Repeatability+/- 2 %

Product TypeElectrical Switch

Electrical Specification115 VAC, 50/60 Hz @ 2A

Accuracy2%

SeriesPSCK

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualPressure Switches - PSCK8, PSCK9PDF·1.7 MB 4 languages· in one file

BrochureWorkholding System Components, EnglishPDF·1.3 MB

CAD Files 3

3D Model
