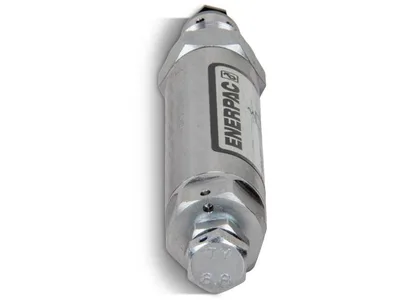

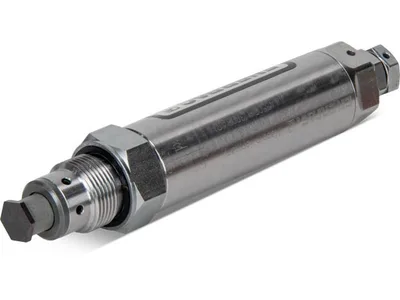

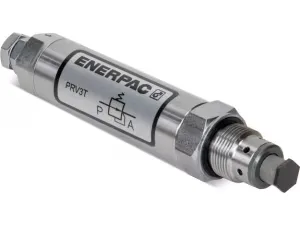

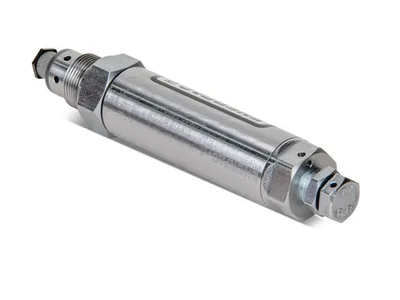

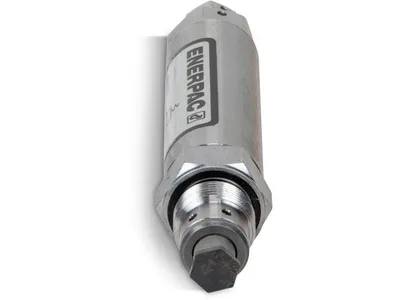

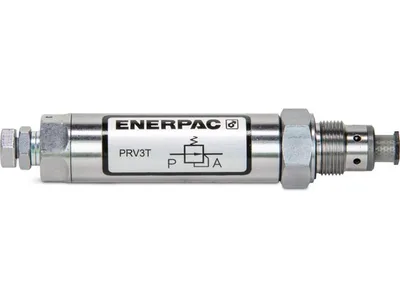

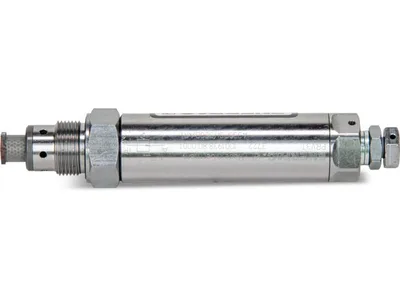

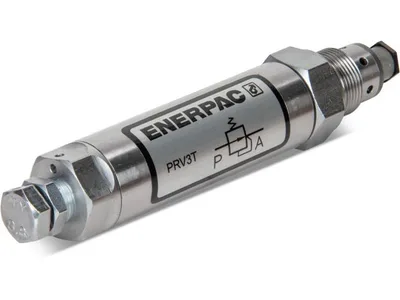

Enerpac PRV3T 30–300 bar Pressure Reducing Valve

Enerpac PRV3T; 30–300 bar (435–4,350 psi) adjustable pressure range, 350 bar max. operating pressure, 7 L/min flow, cartridge-type pressure reducing valve.

EnerpacMFR # PRV3TSKU # CEY-7B4B2D992DE1

Country of OriginGermany

Valve Mounting StyleCartridge

Max. Oil Flow427 in³/min

Maximum Operating Pressure350 bar (5,000 psi)

Adjustable Pressure Range30 - 300 bar (435 - 4,350 psi)

Product TypePressure Reducing Valve

Have questions?Chat on WhatsApp

About This Product

PRV3T is a cartridge-type pressure reducing valve from the Enerpac PRV series. It regulates system pressure according to the adjusted setting and maintains constant pressure in a secondary circuit. It includes a check valve that prevents pressure drop on the secondary side. Maximum operating pressure is 350 bar (5,000 psi), the adjustable pressure range is 30–300 bar (435–4,350 psi) and maximum oil flow is 7 L/min. It weighs 0.7 kg (1.5 lb) and has a G1/4" oil connection. It is used in workholding hydraulic applications and in systems where circuits require different pressure levels.

Features and Benefits

Adjustable pressure range of 30–300 bar (435–4,350 psi)
Maintains constant pressure in a secondary circuit
Integrated check valve prevents pressure drop on the secondary side
Tool-adjustable knob that can be locked
Cartridge style, lightweight at 0.7 kg; G1/4" oil connection

Enerpac PRV3T

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginGermany

Valve Mounting StyleCartridge

Max. Oil Flow427 in³/min

Maximum Operating Pressure350 bar (5,000 psi)

Adjustable Pressure Range30 - 300 bar (435 - 4,350 psi)

Product TypePressure Reducing Valve

SeriesPRV

Maximum Oil Flow7 l/min

Product LineWorkholding Tools

Weight0,7 kg (1.5 lbs)

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualPRV-8, PRV-9 Pressure Reducing Valves & PRVM-2 ManifoldPDF·412 KB·English

BrochureWorkholding Valves, EnglishPDF·1.8 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

PRV3TPRV 3TPRV-3TEnerpac PRV3TEnerpac PRV 3TPRV3T valvePRV3T pressure reducing valvePRV3T cartridge valvePRV3T pressure reducerEnerpac PRV seriesPRV series pressure reducing valveEnerpac pressure reducing valveEnerpac workholding valvecartridge pressure reducing valve30-300 bar adjustable pressure reducing valve350 bar hydraulic pressure reducing valveG1/4 cartridge pressure reducing valvepressure reducing valve with check valveworkholding hydraulic pressure valve
