How can I get a price quote for Enerpac PRV3?

You can request a fast quote for Enerpac PRV3 from Yılsa Engineering. Reference part number YLSZEKHN88PQ0B3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PRV3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PRV3 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PRV3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

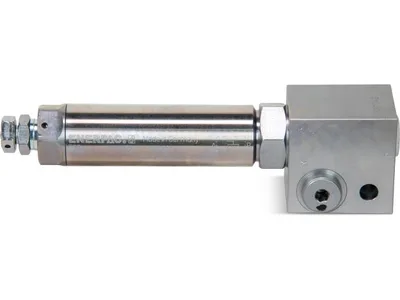

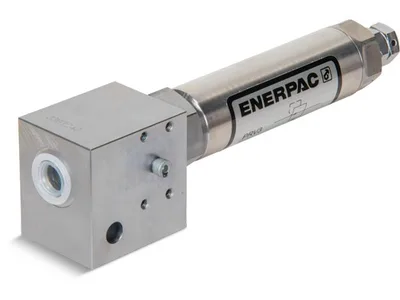

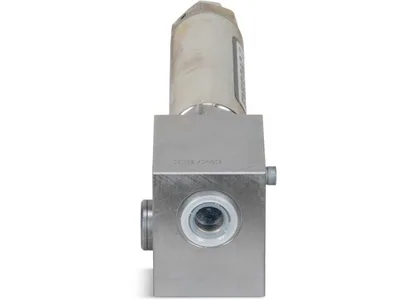

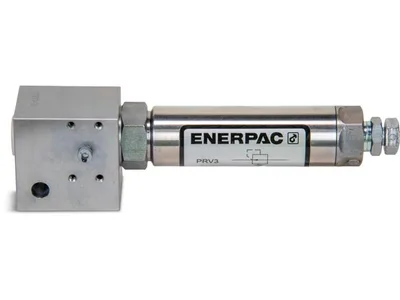

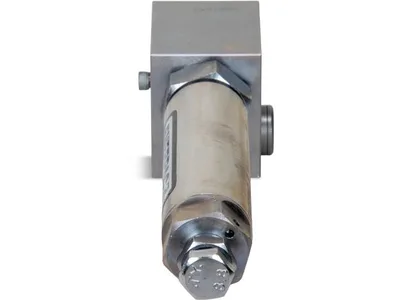

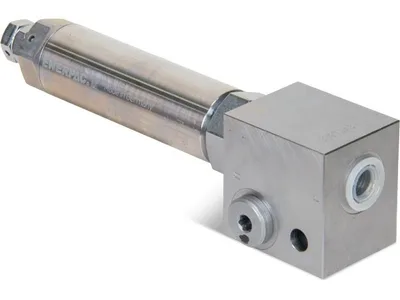

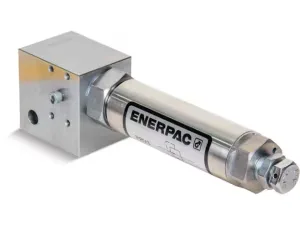

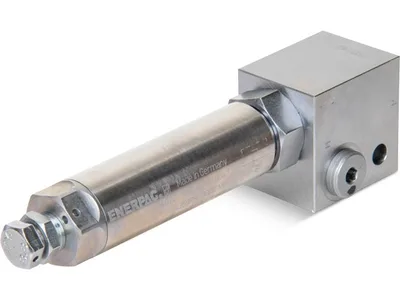

Enerpac PRV3 30–300 bar Pressure Reducing Valve

Enerpac PRV3; remote-mount pressure reducing valve with 30–300 bar adjustable pressure range, 350 bar maximum operating pressure and G1/4 oil port.

EnerpacMFR # PRV3SKU # YLSZEKHN88PQ0B3

Oil PortsG1/4"

Country of OriginGermany

Valve Mounting StyleRemote

Max. Oil Flow427 in³/min

Maximum Operating Pressure350 bar (5,000 psi)

Adjustable Pressure Range30 - 300 bar (435 - 4,350 psi)

Have questions?Chat on WhatsApp

About This Product

PRV3 is a remote-mount pressure reducing valve. It regulates system pressure for all subsequent valves according to the adjusted pressure and maintains a constant pressure in a secondary circuit. The adjustable pressure range is 30–300 bar (435–4,350 psi), maximum operating pressure is 350 bar (5,000 psi) and maximum oil flow is 7 L/min (427 in³/min). The oil connection is G1/4 (BSPP) and weight is 1.3 kg. Country of origin is Germany. It includes a check valve that prevents pressure drop on the secondary side. It is used in workholding and fixture circuits where a secondary circuit needs to be set to a separate pressure.

Features and Benefits

Regulates pressure for subsequent valves and maintains constant pressure in a secondary circuit
Includes a check valve that prevents pressure drop on the secondary side
Tool-adjustable knob that can be locked
Precise pressure control
G1/4 oil connection
Remote mount

Enerpac PRV3

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil PortsG1/4"

Country of OriginGermany

Valve Mounting StyleRemote

Max. Oil Flow427 in³/min

Maximum Operating Pressure350 bar (5,000 psi)

Adjustable Pressure Range30 - 300 bar (435 - 4,350 psi)

Product TypePressure Reducing Valve

SeriesPRV

Maximum Oil Flow7 l/min

Product LineWorkholding Tools

Weight1,3 kg (2.9 lbs)

Documents & CAD

For this product 1

Instruction ManualPressure Reducing Valve - PRV2, PRV3PDF·830 KB 4 languages· in one file

Series documents 1· shared by this product series

BrochureWorkholding Valves, EnglishPDF·1.8 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

PRV3PRV 3Enerpac PRV3Enerpac PRV 3PRV3 pressure reducing valvePRV3 valveEnerpac PRV seriesPRV series pressure reducing valveremote pressure reducing valveremote mount pressure reducing valvepressure reducing valvehydraulic pressure reducing valveworkholding pressure reducing valve30-300 bar adjustable pressure valve350 bar pressure reducing valveG1/4 pressure reducing valvepressure reducing valve G1/4 oil portpressure reducing valve with check valve
