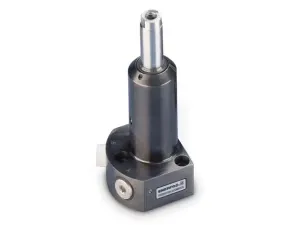

Enerpac PLSS52 5.6 kN Pull Cylinder

Enerpac PLSS52; 5.6 kN pull capacity, 22.6 mm stroke, 350 bar (5,000 psi), single-acting spring-return, lower flange hydraulic pull cylinder.

EnerpacMFR # PLSS52SKU # CEY-937FC77CB647

Dimension V6,9 mm

Diameter D257,2 mm

Maximum Operating Pressure350 bar (5,000 psi)

Dimension E16,0 mm

Dimension T15,7 mm

Dimension KM8 x 1,25 mm

Have questions?Chat on WhatsApp

About This Product

PLSS52 is a lower flange hydraulic pull cylinder from the Enerpac PLSD-PLSS series, designed for workholding applications. It is single-acting with spring return. The cylinder provides 5.6 kN pull capacity and 22.6 mm stroke, with a maximum operating pressure of 350 bar (5,000 psi) and a weight of 1.1 kg. Body diameter is 57.2 mm and overall height is 128.8 mm. Its flexible design allows manifold or threaded port connection, requires no fixture hole, and installs easily with only 3 or 4 mounting bolts. It is used in machining fixtures and hydraulic clamping systems.

Features and Benefits

Lower flange mounting
Flexible design allows for manifold or threaded port connection
No fixture hole required
Easy installation with only 3 or 4 mounting bolts
5.6 kN pull capacity, 22.6 mm stroke, 350 bar operating pressure

Enerpac PLSS52

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension V6,9 mm

Diameter D257,2 mm

Maximum Operating Pressure350 bar (5,000 psi)

Dimension E16,0 mm

Dimension T15,7 mm

Dimension KM8 x 1,25 mm

Oil Capacity (Retract)4,10 cm³

Product TypeWorkholding Pull Cylinder

Dimension N19,1 mm

Dimension X14,4 mm

SeriesPLSD-PLSS

Dimension E115,0 in

Max. Cylinder Retract Capacity5,6 ton

Product LineWorkholding Tools

Maximum Cylinder Capacity (Retract)5,6 kN

Dimension D154,1 mm

Dimension A128,8 mm

Dimension P5,8 mm

Country of OriginNetherlands

Dimension F13,0 mm

Cylinder Effective Area (Retract)5,6 cm²

Dimension U50,0 mm

Dimension D34,8 mm

Dimension H14,0 mm

Dimension C124,9 mm

Stroke22,6 mm

Dimension S41,0 mm

Weight1,1 kg

Return TypeSingle-Acting, Spring Return

Dimension B106,2 mm

Dimension W66,0 mm

Documents & CAD

Series documents 3· shared by this product series

Repair Parts Sheet5 kN (1250 lb) Pull Cylinders RPSPDF·1.1 MB·English

Repair Parts SheetCylinderPDF·96 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
