Enerpac PLSD352

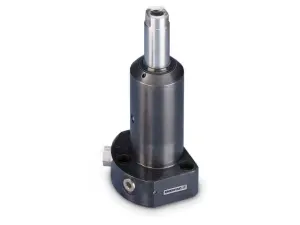

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac PLSD352 43.5 kN Pull Cylinder

Enerpac PLSD352; 43.5 kN pull capacity, 30.5 mm stroke, 350 bar operating pressure, double-acting lower flange hydraulic pull cylinder.

EnerpacMFR # PLSD352SKU # CEY-7B4B2D995632
Oil Capacity (Advance)71,28 cm³
Dimension V10,9 mm
Diameter D288,9 mm
Dimension R25,9 mm
Maximum Operating Pressure350 bar (5,000 psi)
Dimension E38,1 mm
Share
Have questions?Chat on WhatsApp

About This Product

PLSD352 is a double-acting, lower flange hydraulic pull cylinder from the PLSD-PLSS series of Enerpac workholding tools. It provides 43.5 kN pull and 81.9 kN push capacity with a 30.5 mm stroke. Oil capacity is 71.28 cm³ on advance and 37.20 cm³ on retract. Maximum operating pressure is 350 bar (5,000 psi), diameter D2 is 88.9 mm, and the thread is M16 x 2. It is used in workholding fixtures for push and pull applications; lower flange mounting requires no fixture hole.

Features and Benefits

  • Lower flange mounting
  • Flexible design allows manifold or threaded port connection
  • No fixture hole required
  • Easy installation with only 3 or 4 mounting bolts
  • 43.5 kN pull and 81.9 kN push capacity at 350 bar

Enerpac PLSD352

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)71,28 cm³
Dimension V10,9 mm
Diameter D288,9 mm
Dimension R25,9 mm
Maximum Operating Pressure350 bar (5,000 psi)
Dimension E38,1 mm
Dimension T31,0 mm
Dimension KM16 x 2 mm
Maximum Cylinder Capacity (Advance)81,9 kN
Oil Capacity (Retract)37,20 cm³
Product TypeWorkholding Pull Cylinder
Dimension N43,4 mm
Dimension X41,6 mm
SeriesPLSD-PLSS
Dimension E136,1 in
Max. Cylinder Retract Capacity43,5 ton
Product LineWorkholding Tools
Maximum Cylinder Capacity (Retract)43,5 kN
Dimension D1100,1 mm
Dimension A204,2 mm
Dimension P13,0 mm
Country of OriginNetherlands
Dimension F28,7 mm
Cylinder Effective Area (Retract)43,5 cm²
Dimension U70,1 mm
Dimension D79,8 mm
Dimension H12,4 mm
Dimension C124,9 mm
Stroke30,5 mm
Cylinder Effective Area (Advance)81,9 cm²
Dimension S34,8 mm
Weight5,6 kg
Return TypeDouble-Acting, Hydraulic Return
Dimension B173,5 mm
Dimension W96,5 mm

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualPull Cylinders - MetricPDF·282 KB 4 languages· in one file
Repair Parts Sheet35 kN Swing CylindersPDF·441 KB·English
Repair Parts Sheet35 kN Pull CylindersPDF·512 KB·English
Repair Parts SheetSwing CylinderPDF·384 KB·English
BrochureWorkholding Cylinders, EnglishPDF·4.2 MB
