Enerpac PGTS6495S

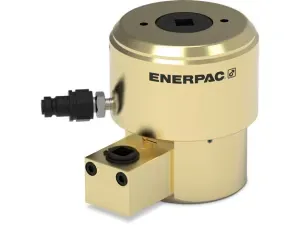

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac PGTS6495S 2297 kN Bolt Tensioner

Enerpac PGTS6495S; 2297.3 kN (258.3 ton) capacity, 10 mm stroke, 1500 bar, single stage hydraulic power generation bolt tensioner for M64 bolts.

EnerpacMFR # PGTS6495SSKU # CEY-55221B12DFE5
Dimension E118 mm (4.65 in)
Nut Across Flats (AF)95 mm (3.74 in)
Country of OriginUnited Kingdom
Dimension D207 mm (8.15 in)
Dimension C69 mm (2.7 in)
Dimension S3/8 in
Share
Have questions?Chat on WhatsApp

About This Product

PGTS6495S is a single stage hydraulic power generation bolt tensioner from the Enerpac PGT series. It is designed for M64 x 6.0 bolts and has a 95 mm nut A/F. Maximum operating pressure is 1500 bar (21,750 psi), load capacity is 2297.3 kN (258.3 ton), hydraulic pressure area is 15,315 mm² and stroke is 10 mm. Minimum bolt protrusion is 137 mm, maximum is 150 mm, and weight is 30.7 kg. The PGT series is used for bolt tensioning in critical fastening applications on wind, steam and gas turbines, including tight spaces.

Features and Benefits

  • 2297.3 kN (258.3 ton) load capacity, 1500 bar maximum pressure
  • For M64 x 6.0 bolts and 95 mm nut A/F
  • Auto-retract piston simplifies use and speeds up operation
  • Long-life seals and puller for durability
  • Zinc coating provides corrosion protection

Enerpac PGTS6495S

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Dimension E118 mm (4.65 in)
Nut Across Flats (AF)95 mm (3.74 in)
Country of OriginUnited Kingdom
Dimension D207 mm (8.15 in)
Dimension C69 mm (2.7 in)
Dimension S3/8 in
Maximum Operating Pressure1500 bar (21,750 psi)
Load Capacity2297,3 kN (258.3 ton)
Dimension B159 mm (6.26 in)
Threaded Fastener RangeM64 x 6,0
ApplicationsTension
Hydraulic Pressure Area15.315 mm²
Product TypePower Generation Bolt Tensioner Single Stage
SeriesPGT
Bolt Diameter64 mm (2.52 in)
Stroke10 mm (0.39 in)
Max. Bolt Protrusion150 mm (5.91 in)
Min. Bolt Protrusion137 mm (5.39 in)
Dimension A200 mm (7.87 in)
Product LineBolting Tools
Weight30,7 kg (67.68 lbs)
Cylinder Effective Area23.74 in²

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualPGT-Series Single Stage TensionersPDF·2.2 MB
BrochurePGT-Series Power Generation Bolt Tensioners; EnglishPDF·231 KB
