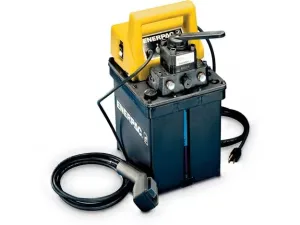

Enerpac PED1101B 700 bar Submerged Electric Pump

The PED1101B is a two-speed submerged electric hydraulic pump designed for use with single-acting cylinders. The motor runs submerged in the oil reservoir, which keeps it cooler, simplifies the pump interface, saves space and reduces noise. Maximum operating pressure is 700 bar (10,000 psi), 1st stage pressure is 69 bar (1,000 psi), 1st stage flow is 150 in³/min (≈2.5 L/min) and 2nd stage flow is 0.27 L/min (20 in³/min). The motor is 0.5 hp, 115 V, single-phase, 50/60 Hz. The reservoir has a usable oil capacity of 1.5 gallons (≈5.7 L). The relief valve is adjustable from 70 to 700 bar and sound level is 62-70 dBA. The pump is controlled by a remote pendant, the valve has an advance/retract function and a dump valve is included. It is suited to small and medium size cylinders or hydraulic tools, and to applications needing quiet, intermittent duty.
