How can I get a price quote for Enerpac PATG5102NB?

You can request a fast quote for Enerpac PATG5102NB from Yılsa Engineering. Reference part number CEY-937FC77C8720. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PATG5102NB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PATG5102NB genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PATG5102NB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

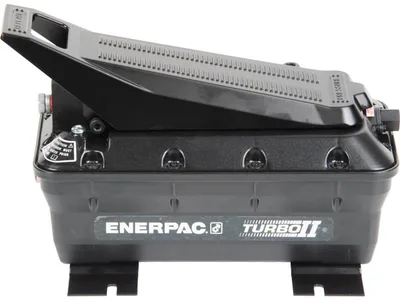

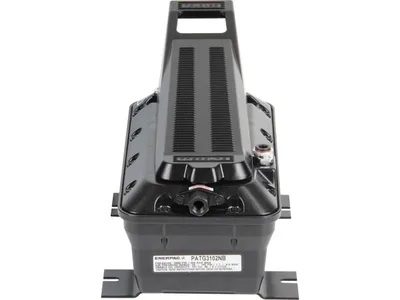

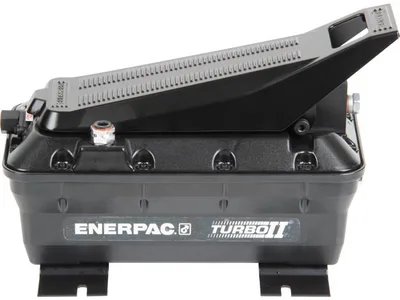

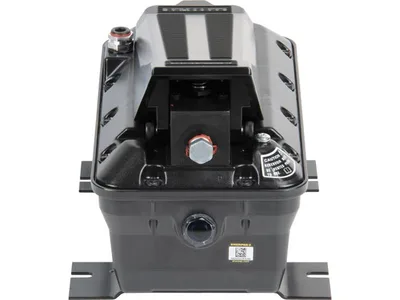

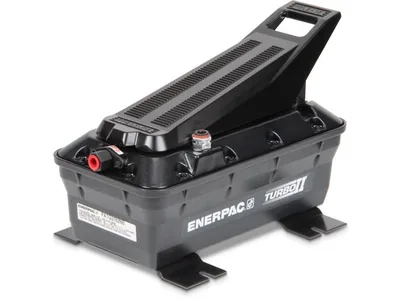

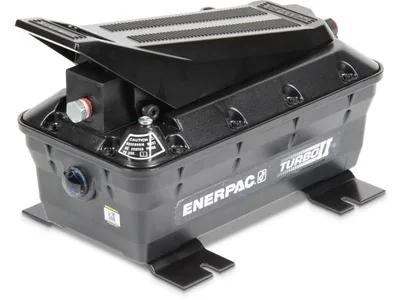

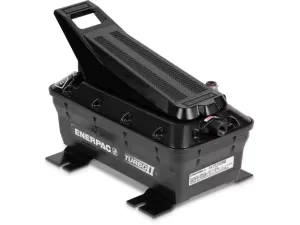

Enerpac PATG5102NB 350 bar Air Hydraulic Pump

Enerpac PATG5102NB; 350 bar (5,000 psi), 60:1 ratio, 0.53 gal (116 in³) reservoir, hand/foot operated 3-way air hydraulic pump (Turbo II).

EnerpacMFR # PATG5102NBSKU # CEY-937FC77C8720

Output Flow Rate (No Load)60 in³/min (120 in³/min)

Maximum Operating Pressure Range350 bar (5,000 psi)

Country of OriginUnited States

Output Flow Rate at Load10 in³/min

Maximum Operating Pressure350 bar (5,000 psi)

Air Pressure Range1,7 - 8,6 bar (50 - 125 psi)

Have questions?Chat on WhatsApp

About This Product

PATG5102NB is a compact-reservoir air hydraulic pump from the Enerpac PATG Turbo II series. It generates 350 bar (5,000 psi) of hydraulic pressure from compressed air at a 60:1 hydraulic-to-air ratio and operates on 50-125 psi (1.7-8.6 bar) air. The pump has a 3-way, 3-position valve (Advance / Hold / Retract) with hand/foot control. Reservoir capacity is 0.53 gal (116 in³); usable oil is 2.1 L (122 in³) horizontally and 1.1 L (70 in³) vertically mounted. Oil flow is 120 in³/min at 0 psi and 1.64 l/min at rated pressure. It suits medium to low cycle clamping circuits and single acting tools.

Features and Benefits

350 bar (5,000 psi) maximum operating pressure
60:1 hydraulic-to-air ratio
Compact 0.53 gal (116 in³) reservoir
Operates on 50-125 psi air; Air Saver Piston reduces air consumption
Stall-restart operation maintains system pressure
External adjustable and internal pressure relief valves

Enerpac PATG5102NB

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)60 in³/min (120 in³/min)

Maximum Operating Pressure Range350 bar (5,000 psi)

Country of OriginUnited States

Output Flow Rate at Load10 in³/min

Maximum Flow at Rated Pressure1.64 l/min (10 in3/min · 1,64 l/min · 10 in³/min)

Maximum Operating Pressure350 bar (5,000 psi)

Air Pressure Range1,7 - 8,6 bar (50 - 125 psi)

Valve FunctionAdvance / Hold / Retract

Usable Oil Capacity (Horizontal Mount)2,1 cm³ (122 in³)

Usable Oil Capacity (Vertical Mount)1,1 l (70 in³)

Pump ControlHand/Foot

Hydraulic to Air Ratio60:01:00

Reservoir Capacity0.53 gal

Product TypeAir Pump

Reservoir Capacity2100 cm³ (116 in³)

Pump Valve Type3-way, 3-position

SeriesPATG

Pump Power SourceAir

Flow Rate Range at Rated Pressure0,98 - 1,95 l/min (0 - 20 in³/min)

Air Consumption340 l/min (12 scfm)

Product LineWorkholding Tools

Weight8,6 kg (19 lbs)

Documents & CAD

Series documents 4· shared by this product series

Repair Parts SheetTurbo II Air Pumps Repair Parts SheetPDF·1.7 MB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochurePA-Series Turbo II Air Hydraulic Pumps; EnglishPDF·342 KB

CAD Files 2

3D Model
