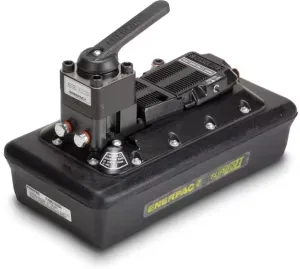

Enerpac PAMG34S8N 350 bar Air Hydraulic Pump
Enerpac PAMG34S8N; 350 bar (5000 psi), 180 in³/min flow at 0 psi, Turbo II air hydraulic pump with 462 in³ (7.5 L) reservoir and 4-way manual valve.
Maximum Operating Pressure Range350 bar (5,000 psi)
Country of OriginUnited States
Output Flow Rate at No Load180 in³/min
Maximum Operating Pressure350 bar (5,000 psi)
Air Pressure Range1,7 - 8,6 bar (50 - 125 psi)
Hydraulic to Air Ratio45:01:00
About This Product
Enerpac PAMG34S8N is a pump from the PAMG family of the Turbo II air hydraulic pump series, intended for single-acting applications. Maximum operating pressure is 350 bar (5000 psi) and the valve is 4-way, 3-position, tandem center (valve model VM4).
Reservoir capacity is 462 in³ (2 gal, 7.5 L) and the hydraulic-to-air ratio is 45:1. Air pressure range is 50-125 psi, air consumption is 12 scfm and weight is 27.2 kg.
It is used in simple clamping circuits and workholding applications.
Features and Benefits
- 350 bar (5000 psi) maximum operating pressure
- 462 in³ (7.5 L) reservoir; 27.2 kg
- On-demand stall-restart operation maintains system pressure
- External adjustable pressure relief valve and internal overload relief valve
- 45:1 hydraulic-to-air ratio; 50-125 psi air pressure
- Five valve mounting options and serviceable air motor assembly
Enerpac PAMG34S8N
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Maximum Operating Pressure Range350 bar (5,000 psi)
Country of OriginUnited States
Maximum Flow at Rated Pressure2.45 l/min (10 in3/min · 2,45 l/min · 10 in³/min)
Output Flow Rate at No Load180 in³/min
Maximum Operating Pressure350 bar (5,000 psi)
Air Pressure Range1,7 - 8,6 bar (50 - 125 psi)
Hydraulic to Air Ratio45:01:00
Reservoir Capacity2 gal
Product TypeAir Pump
Reservoir Capacity7500 cm³ (462 in³)
Valve OperationManual
Pump Valve Type4-way, 3-position, Tandem Center
SeriesPAMG
Usable Oil Capacity7,5 l (462 in³)
Pump Power SourceAir
Flow Rate Range at Rated Pressure1,96 - 3,27 l/min (0 - 20 in³/min)
Air Consumption340 l/min (12 scfm)
Valve ModelVM4
Product LineWorkholding Tools
Weight27,2 kg (60 lbs)
