How can I get a price quote for Enerpac PAMG1402N?

You can request a fast quote for Enerpac PAMG1402N from Yılsa Engineering. Reference part number CEY-55221B12D92D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PAMG1402N in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PAMG1402N genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PAMG1402N?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

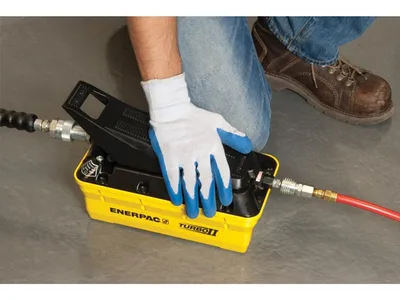

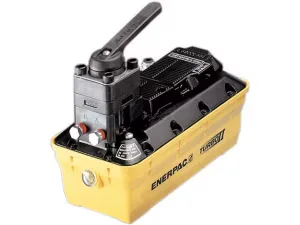

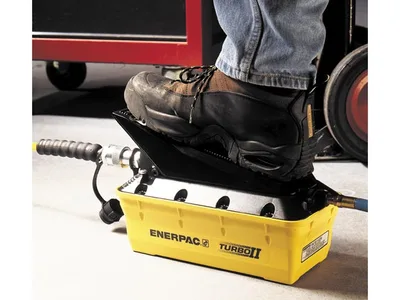

Enerpac PAMG1402N 700 bar Air Hydraulic Pump

Enerpac PAMG1402N; 700 bar (10,000 psi), 2081 cm³ (127 in³) usable oil, Turbo II air hydraulic pump with 4/3 manual valve for double-acting cylinders.

EnerpacMFR # PAMG1402NSKU # CEY-55221B12D92D

Dimension E102 mm (4 in)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,16 l/min

Country of OriginUnited States

Dimension F36 mm (1.42 in)

Dimension D230 mm (9.04 in)

Have questions?Chat on WhatsApp

About This Product

Enerpac PAMG1402N is a manual lever-operated pump from the PAMG family of the Turbo II air hydraulic pump series. Maximum operating pressure is 700 bar (10,000 psi) and usable oil capacity is 2081 cm³ (127 in³). Its Advance / Hold / Retract valve function makes it suitable for double-acting tools. Output flow is 1.0 l/min at no load and 0.16 l/min under load. It generates hydraulic pressure from available compressed air for simple clamping circuits and medium or lower cycle applications.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
Advance / Hold / Retract valve function for double-acting tools
High efficiency cast aluminum air motor for longer life and lower air consumption
Air saver piston reduces air consumption and operating costs
Return-to-tank port for remote valve applications
Quiet 76 dBA operation; 40-125 psi operating air pressure; internal pressure relief valve

Enerpac PAMG1402N

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E102 mm (4 in)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,16 l/min

Country of OriginUnited States

Dimension F36 mm (1.42 in)

Dimension D230 mm (9.04 in)

Maximum Flow at Rated Pressure0.16 l/min (10 in3/min · 0,16 l/min · 10 in³/min)

Dimension C267 mm (10.5 in)

Usable Oil Capacity2081 cm³ (127 in³)

Maximum Operating Pressure700 bar (10,000 psi)

Valve FunctionAdvance / Hold / Retract

Dimension B165 mm (6.49 in)

Output Flow Rate (No Load)1,0 l/min

Dimension K41.91 mm (1.65 in)

Dimension L113 mm (1.65 in)

Dimension J152 mm (6 in)

Dimension H130 mm (5.23 in)

Dimension M315 mm (12.6 in)

Product TypeAir Pump

Reservoir Capacity2081 cm³ (127 in³)

Valve OperationManual

Pump Valve Type4-way, 3-position, Tandem Center

SeriesPAMG

Pump Power SourceAir

Air Pressure Range2,8 - 8,8 bar

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Cylinder CompatibilityDouble-acting

Dimension A313 mm (12.33 in)

Valve ModelVM4

Product LineIndustrial Tools

Weight11,0 kg (24 lbs)

Air Consumption340 l/min

Documents & CAD

Series documents 8· shared by this product series

Instruction Manual10,000 PSI TURBO II AIR PUMPSPDF·1.6 MB·English

Instruction ManualAir PumpPDF·2.1 MB 4 languages· in one file

Repair Parts SheetTurbo II Air Pumps Repair Parts SheetPDF·1.7 MB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochurePA-Series Turbo II Air Hydraulic Pumps; EnglishPDF·342 KB

DocumentTurbo Air ButtonPDF·1.2 MB·English

DocumentAir Pumps, Turbo IIPDF·388 KB·English

CAD Files 2

3D Model

Alternative Names & Search Terms

PAMG1402NPAMG-1402NPAMG 1402NEnerpac PAMG1402NEnerpac PAMG-1402NEnerpac PAMG 1402NPAMG1402N air hydraulic pumpPAMG1402N pumpEnerpac PAMG seriesTurbo II air hydraulic pumpEnerpac Turbo II pump700 bar air hydraulic pump10,000 psi air hydraulic pumpair pump for double-acting cylinders4/3 manual valve air hydraulic pump127 in3 usable oil hydraulic pumpair over hydraulic pump 700 barpneumatic hydraulic pump
