How can I get a price quote for Enerpac PAM1042?

You can request a fast quote for Enerpac PAM1042 from Yılsa Engineering. Reference part number CEY-937FC780732A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PAM1042 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PAM1042 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PAM1042?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

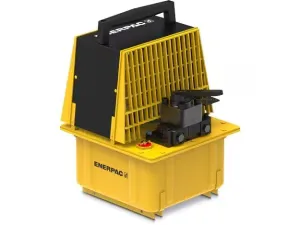

Enerpac PAM1042 700 bar Air Hydraulic Pump

Enerpac PAM1042; 700 bar (10,000 psi), about 7.6 L (2.0 gal) usable oil, air hydraulic pump with 4/3 manual valve for double-acting cylinders.

EnerpacMFR # PAM1042SKU # CEY-937FC780732A

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate 1st Stage10,65 l/min (650 in³/min)

Country of OriginUnited States

Length320 mm (12.63 in)

Reservoir Size Range8,0 - 19,9 l

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

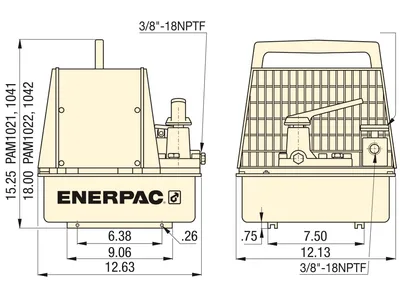

PAM1042 is an air-powered hydraulic pump for use with double-acting cylinders. A 4-way, 3-position manual valve provides advance / hold / retract function. Maximum operating pressure is 700 bar (10,000 psi) and usable oil capacity is about 7.6 L (2.0 gal). First-stage flow is 10.65 l/min and second-stage flow is 0.15 l/min. Air pressure range is 4.1 - 8.3 bar (60 - 120 psi) and sound level is 87 dBA. The pump measures 320 x 308 mm (12.63 x 12.13 in). It is used with double-acting cylinder applications that need a larger oil volume.

Features and Benefits

Twin air motor design delivers high flow in first stage for rapid cylinder advance
700 bar (10,000 psi) maximum operating pressure
4-way, 3-position manual valve (advance / hold / retract)
About 7.6 L (2.0 gal) usable oil capacity
Integral shroud protects air motors and eases portability

Enerpac PAM1042

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate 1st Stage10,65 l/min (650 in³/min)

Country of OriginUnited States

Length320 mm (12.63 in)

Maximum Flow at Rated Pressure0.15 l/min (9 in3/min · 0,15 l/min · 9 in³/min)

Reservoir Size Range8,0 - 19,9 l

Maximum Operating Pressure700 bar (10,000 psi)

Air Pressure Range4,1 - 8,3 bar (60 - 120 psi)

Valve FunctionAdvance / Hold / Retract

Output Flow Rate 2nd Stage0,15 l/min (9 in³/min)

Usable Oil Capacity7,6 l (2 gal)

Product TypeAir Pump

Reservoir Capacity7600 cm³ (462 in³)

Width308 mm (12.13 in)

Sound Level87 dB(A)

Valve OperationManual

Pump Valve Type4-way, 3-position

SeriesPAM

Pump Power SourceAir

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Model Type2.0 gallon Capacity, Double-Acting Compatible

Cylinder CompatibilityDouble-acting

Air Consumption510 l/min (18 scfm)

Valve ModelVM4

Product LineIndustrial Tools

Height457 mm (18 in)

Weight27,2 kg (60 lbs)

Reservoir Capacity8 l

Documents & CAD

Series documents 7· shared by this product series

Instruction ManualManually Operated Control Valves, VM/VC-3/3L/4/4L/15/15L/20/20L, VM33/33L/43/43LPDF·4.5 MB 4 languages· in one file

Instruction ManualPump - AirPDF·10.4 MB 4 languages· in one file

Repair Parts SheetPump - AirPDF·225 KB·English

Repair Parts SheetValve - ManualPDF·478 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochurePAM-Series Air Hydraulic Pumps; EnglishPDF·212 KB
