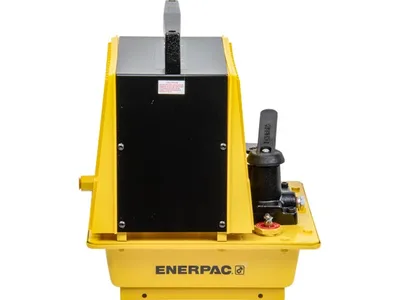

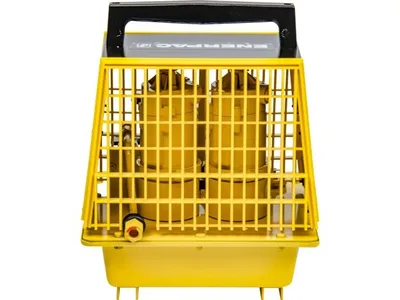

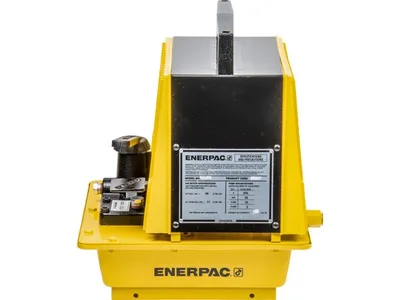

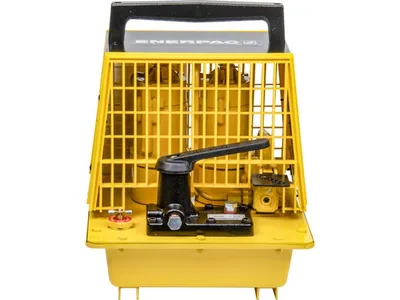

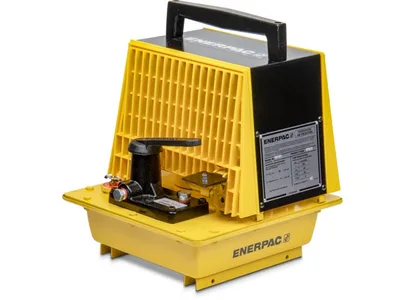

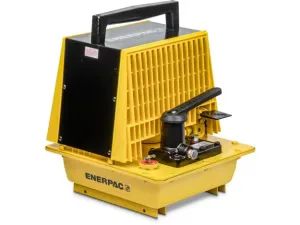

Enerpac PAM1021 700 bar Air Hydraulic Pump

Enerpac PAM1021; 700 bar (10,000 psi), about 2.6 L (0.7 gal) usable oil, air hydraulic pump with 3/2 manual valve for single-acting cylinders.

EnerpacMFR # PAM1021SKU # CEY-8EF3B033ED8E

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate 1st Stage10,65 l/min (650 in³/min)

Country of OriginUnited States

Length320 mm (12.63 in)

Reservoir Size Range4,0 - 7,9 l

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

PAM1021 is an air-powered hydraulic pump for use with single-acting cylinders. A 3-way, 2-position manual valve provides advance / retract function. Maximum operating pressure is 700 bar (10,000 psi) and usable oil capacity is about 2.6 L (0.7 gal). First-stage flow is 10.65 l/min and second-stage flow is 0.15 l/min. Air pressure range is 4.1 - 8.3 bar (60 - 120 psi) and sound level is 87 dBA. The pump measures 320 x 308 mm (12.63 x 12.13 in). It is used to operate single-acting hydraulic cylinders in industrial applications.

Features and Benefits

Twin air motor design delivers high flow in first stage for rapid cylinder advance
700 bar (10,000 psi) maximum operating pressure
3-way, 2-position manual valve (advance / retract)
Air pressure range 4.1 - 8.3 bar (60 - 120 psi)
Integral shroud protects air motors and eases portability

Enerpac PAM1021

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate 1st Stage10,65 l/min (650 in³/min)

Country of OriginUnited States

Length320 mm (12.63 in)

Maximum Flow at Rated Pressure0.15 l/min (9 in3/min · 0,15 l/min · 9 in³/min)

Reservoir Size Range4,0 - 7,9 l

Maximum Operating Pressure700 bar (10,000 psi)

Air Pressure Range4,1 - 8,3 bar (60 - 120 psi)

Valve FunctionAdvance / Retract

Output Flow Rate 2nd Stage0,15 l/min (9 in³/min)

Usable Oil Capacity2,6 l (0.7 gal)

Product TypeAir Pump

Reservoir Capacity2600 cm³ (162 in³)

Width308 mm (12.13 in)

Sound Level87 dB(A)

Valve OperationManual

Pump Valve Type3-way, 2-position

SeriesPAM

Pump Power SourceAir

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Model Type0.7 gallon Capacity, Single-Acting Compatible

Cylinder CompatibilitySingle-acting

Air Consumption510 l/min (18 scfm)

Valve ModelVM2

Product LineIndustrial Tools

Height387 mm (15.25 in)

Weight22,7 kg (50 lbs)

Reservoir Capacity4 l

Documents & CAD

For this product 1

2D DrawingPAM1021 drawingPDF·1.0 MB

Series documents 7· shared by this product series

Instruction ManualManually Operated Control Valves, VM/VC-3/3L/4/4L/15/15L/20/20L, VM33/33L/43/43LPDF·4.5 MB 4 languages· in one file

Instruction ManualPump - AirPDF·10.4 MB 4 languages· in one file

Repair Parts SheetPump - AirPDF·225 KB·English

Repair Parts SheetValvePDF·82 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochurePAM-Series Air Hydraulic Pumps; EnglishPDF·212 KB
