How can I get a price quote for Enerpac PACG30S8SMB2?

You can request a fast quote for Enerpac PACG30S8SMB2 from Yılsa Engineering. Reference part number CEY-55221B11E9F3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PACG30S8SMB2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PACG30S8SMB2 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PACG30S8SMB2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

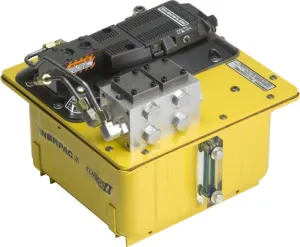

Enerpac PACG30S8SMB2 350 bar Air Hydraulic Pump

Enerpac PACG30S8SMB2; 350 bar (5,000 psi) max pressure, 180 in³/min oil flow, 45:1 ratio, air hydraulic pump with mount for two D03 valves.

EnerpacMFR # PACG30S8SMB2SKU # CEY-55221B11E9F3

Maximum Operating Pressure Range350 bar (5,000 psi)

Country of OriginUnited States

Output Flow Rate at No Load180 in³/min

Maximum Operating Pressure350 bar (5,000 psi)

Air Pressure Range1,7 - 8,6 bar (50 - 125 psi)

Hydraulic to Air Ratio45:01:00

Have questions?Chat on WhatsApp

About This Product

PACG30S8SMB2 is an Enerpac PACG series Turbo II air hydraulic pump with a pump mount for two D03 valves. Maximum operating pressure is 350 bar (5,000 psi) with a hydraulic-to-air ratio of 45:1. Air inlet pressure is 1.7–8.6 bar (50–125 psi) and air consumption is 12 scfm (340 L/min). Reservoir capacity is 2 gal (462 in³, 7.5 L) and weight is 26.3 kg (58 lb). Valve operation is listed as solenoid. Valves are user supplied. It is used in single- or double-acting workholding applications with intermittent to medium duty cycles.

Features and Benefits

Pump mount for two D03 valves
Stall-restart operation maintains system pressure
External adjustable and internal pressure relief valves
Reduced noise level of 75 dBA
Operates on 1.7–8.6 bar (50–125 psi) air
Serviceable air motor assembly

Enerpac PACG30S8SMB2

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range350 bar (5,000 psi)

Country of OriginUnited States

Maximum Flow at Rated Pressure2.45 l/min (180 in3/min · 2,45 l/min · 180 in³/min)

Output Flow Rate at No Load180 in³/min

Maximum Operating Pressure350 bar (5,000 psi)

Air Pressure Range1,7 - 8,6 bar (50 - 125 psi)

Hydraulic to Air Ratio45:01:00

Reservoir Capacity2 gal

Product TypeAir Pump

Reservoir Capacity7500 cm³ (462 in³)

Valve OperationSolenoid

SeriesPACG

Usable Oil Capacity7,5 l (462 in³)

Pump Power SourceAir

Flow Rate Range at Rated Pressure1,96 - 3,27 l/min (120 - 200 in³/min)

Air Consumption340 l/min (12 scfm)

Valve ModelPump mount, Two D03 Valves

Product LineWorkholding Tools

Weight26,3 kg (58 lbs)

Documents & CAD

Series documents 5· shared by this product series

Repair Parts SheetTurbo II Air Pumps Repair Parts SheetPDF·1.7 MB·English

Repair Parts SheetTurbo II Air Pumps Repair Parts SheetPDF·1.8 MB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureWorkholding Power Sources, EnglishPDF·2.9 MB
