How can I get a price quote for Enerpac PA135?

You can request a fast quote for Enerpac PA135 from Yılsa Engineering. Reference part number CEY-0681555D6B48. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PA135 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PA135 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PA135?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

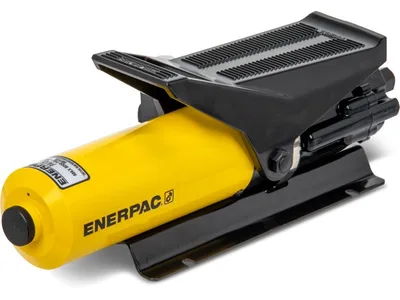

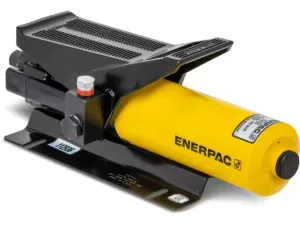

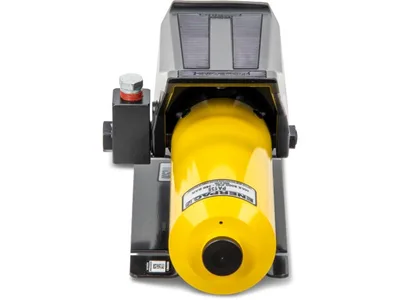

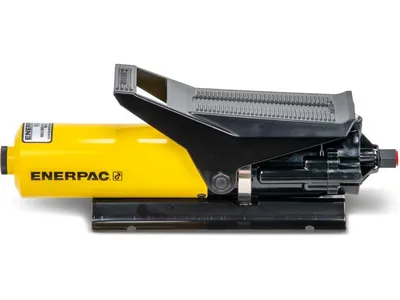

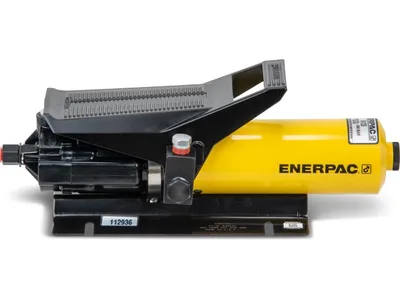

Enerpac PA135 350 bar Air Hydraulic Pump

Enerpac PA135; 350 bar (5,000 psi) max pressure, 600 cm³ oil capacity, 0.98 l/min flow, air-driven hydraulic pump for single-acting cylinders.

EnerpacMFR # PA135SKU # CEY-0681555D6B48

Output Flow Rate (No Load)60 in³/min

Maximum Operating Pressure Range350 bar (5,000 psi)

Country of OriginUnited States

Output Flow Rate at Load10 in³/min

Maximum Operating Pressure350 bar (5,000 psi)

Air Pressure Range4,1 - 6,9 bar (60 - 100 psi)

Have questions?Chat on WhatsApp

About This Product

The PA135 is an air-driven hydraulic pump from the Enerpac PA series, intended for workholding applications. It is used with single-acting cylinders and runs on 4.1 - 6.9 bar (60 - 100 psi) air pressure. Maximum operating pressure is 350 bar (5,000 psi), reservoir capacity is 600 cm³ (36.6 in³) and flow at 0 psi is 0.98 l/min (60 in³/min). Air consumption is 12 scfm (255 l/min) and weight is 6.5 kg. A built-in 3-way, 2-position valve provides advance-retract cycle operation. The patented air saver design reduces air usage, and the internal muffler is rated at 80 dBA. Base mounting slots are included.

Features and Benefits

Patented air saver design for minimal air usage
Quiet internal air muffler at 80 dBa
360° swivel oil and air fittings
External adjustable relief valve
Built-in 3-way, 2-position valve for advance-retract cycle

Enerpac PA135

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)60 in³/min

Maximum Operating Pressure Range350 bar (5,000 psi)

Country of OriginUnited States

Output Flow Rate at Load10 in³/min

Maximum Flow at Rated Pressure0.98 l/min (60 in3/min · 0,98 l/min · 60 in³/min)

Maximum Operating Pressure350 bar (5,000 psi)

Air Pressure Range4,1 - 6,9 bar (60 - 100 psi)

Valve FunctionAdvance / Retract

Product TypeAir Pump

Reservoir Capacity600 cm³ (37 in³)

Valve OperationManual

SeriesPA

Pump Power SourceAir

Flow Rate Range at Rated Pressure0,98 - 1,95 l/min (60 - 119 in³/min)

Model Type36.6 in3 Capacity, 60 in3/min Flow, 0 psi

Cylinder CompatibilitySingle-acting

Air Consumption255 l/min (12 scfm)

Product LineWorkholding Tools

Weight6.5 kg (14.3 lbs)

Usable Oil Capacity0,6 l

Documents & CAD

Series documents 4· shared by this product series

Repair Parts SheetPump - AirPDF·740 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureWorkholding Power Sources, EnglishPDF·2.9 MB

CAD Files 3

3D Model
