How can I get a price quote for Enerpac P461D?

You can request a fast quote for Enerpac P461D from Yılsa Engineering. Reference part number YLSEWPNZTFSG6D4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac P461D in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac P461D genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac P461D?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

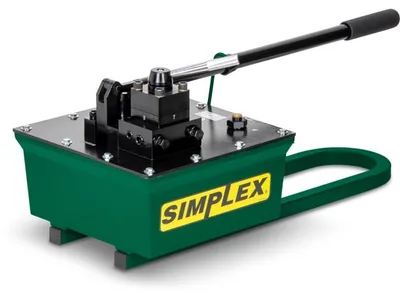

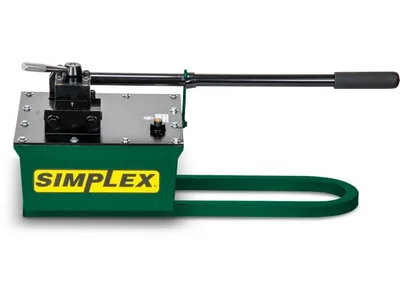

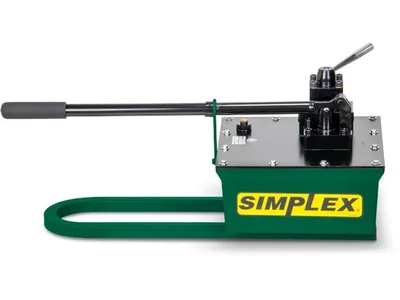

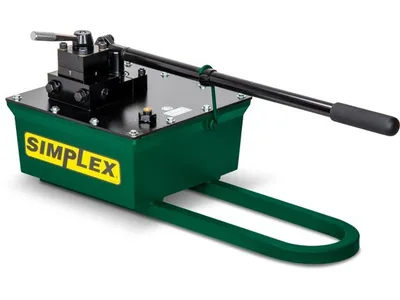

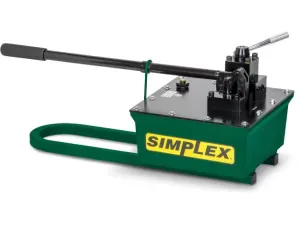

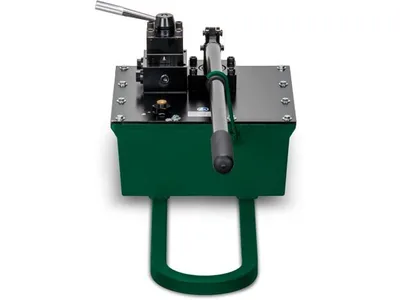

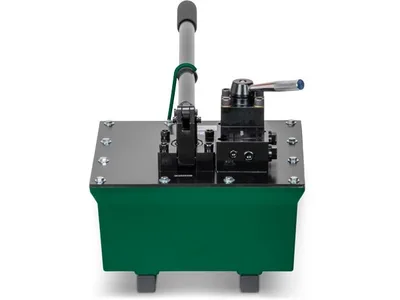

Enerpac P461D 700 bar Hand Pump

Enerpac P461D; 700 bar max pressure, 6500 cm³ usable oil, 5 cm³/stroke at 700 bar, two-speed heavy duty steel hydraulic hand pump for double-acting tools.

EnerpacMFR # P461DSKU # YLSEWPNZTFSG6D4

Country of OriginTaiwan

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension C304,8 mm (12 in)

Usable Oil Capacity6500 cm³ (397 in³)

Oil Displacement per Stroke (2nd Stage)5 cm³ (0.3 in³)

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The P461D is a two-speed, heavy duty steel hydraulic hand pump from the P Steel series. It is designed for use with double-acting hydraulic tools and is manually operated. It delivers 126.2 cm³ per stroke in the first stage (up to 28 bar) and 5 cm³ per stroke at 700 bar in the second stage. Usable oil capacity is 6500 cm³ (397 in³) and weight is 27.7 kg. It offers adjustable handle effort (dual pivot points) and external adjustable relief valves. Its large reservoir suits double-acting cylinder applications that need a high oil volume.

Features and Benefits

Heavy duty metal construction for durability
High oil displacement per stroke: 126.2 cm³ first stage, 5 cm³ second stage
Adjustable handle effort / dual pivot points
Low, back-saving handle effort
External adjustable relief valves
6500 cm³ usable oil, compatible with double-acting tools

Enerpac P461D

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginTaiwan

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension C304,8 mm (12 in)

Usable Oil Capacity6500 cm³ (397 in³)

Oil Displacement per Stroke (2nd Stage)5 cm³ (0.3 in³)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B577,9 mm (22.75 in)

Oil Displacement per Stroke (1st Stage)126,2 cm³ (7.7 in³)

1st Stage Pressure Rating28 bar (400 psi)

Product TypeHand Pump - Heavy Duty Steel

SeriesP Steel

Pump Power SourceManual

Model Type397 in3 Capacity, Double-acting Compatible, Heavy Duty Steel, 10,000 psi

Cylinder CompatibilityDouble-Acting

Dimension A644,7 mm (25.38 in)

Product LineHydraulic Tools

Weight27,7 kg (61 lbs)

Alternative Names & Search Terms

P461DP 461DP-461DEnerpac P461DSimplex P461DEnerpac Simplex P461DP461D hydraulic hand pumpP461D pumpP461D two speed pumpSimplex P seriesEnerpac P Steel seriesP Steel hand pumptwo speed hydraulic hand pump700 bar hydraulic hand pumphand pump for double-acting cylinders6500 cm³ oil capacity hand pumpheavy duty steel hydraulic hand pumphand pump with external relief valve10,000 psi double-acting hand pump
