How can I get a price quote for Enerpac P392FP?

You can request a fast quote for Enerpac P392FP from Yılsa Engineering. Reference part number CEY-55221B12BF39. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac P392FP in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac P392FP genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac P392FP?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

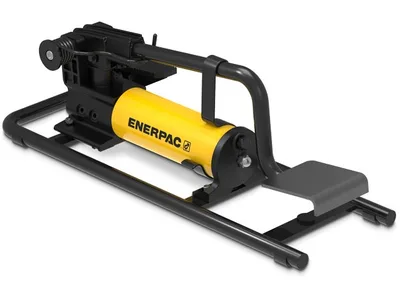

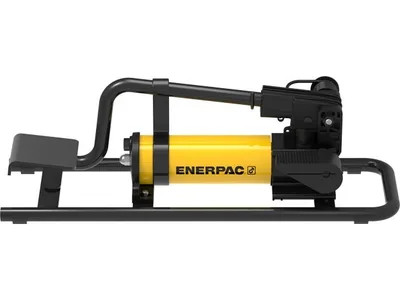

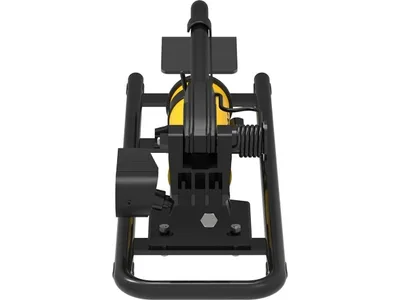

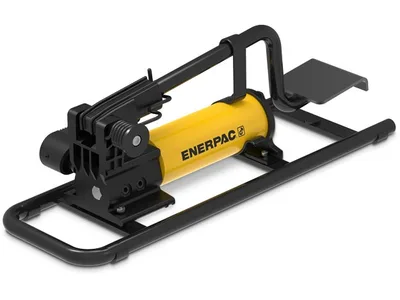

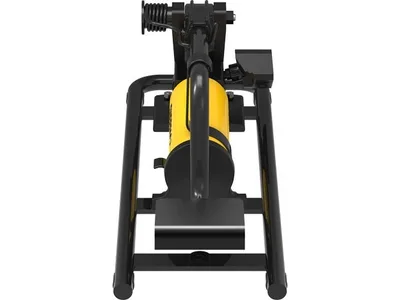

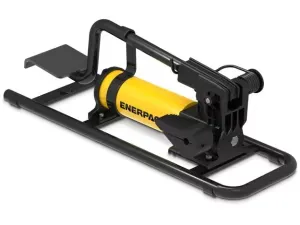

Enerpac P392FP 700 bar Two-Speed Foot Pump

Enerpac P392FP; 700 bar, 492 cm³ usable oil, two-speed lightweight hydraulic foot pump for single-acting cylinders.

EnerpacMFR # P392FPSKU # CEY-55221B12BF39

Cylinder CompatibilitySingle-acting

Usable Oil Capacity492 cm³ (30 in³)

Pump TypeTwo Speed

Max. Handle Effort42 kg (125 lbs)

Maximum Operating Pressure700 bar (10,000 psi)

Weight7,0 kg (16 lbs)

Have questions?Chat on WhatsApp

About This Product

P392FP is a compact, lightweight two-speed hydraulic foot pump with a maximum operating pressure of 700 bar. It is used with single-acting cylinders; usable oil capacity is 492 cm³ (30 in³) and weight is 7.0 kg. The steel lever pedal and foot-operated release valve leave the hands free and remove the need to bend over. The two-speed design reduces pedal strokes compared with a single-speed type (up to 78% per the source data). Maximum flow is 2.47 cm³/stroke and maximum handle effort is 42 kg. A steel frame, aluminum reservoir, foot pedal lock and integral pressure relief valve provide a durable and portable build.

Features and Benefits

700 bar maximum operating pressure, for single-acting cylinders
Two-speed operation reduces foot pedal strokes
Steel frame and steel pumping handle for stability
Aluminum reservoir, 7.0 kg lightweight build and pedal lock for easy transport
Large foot-pad release valve for controlling load descent
Integral pressure relief valve for overload protection

Enerpac P392FP

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder CompatibilitySingle-acting

Usable Oil Capacity492 cm³ (30 in³)

Pump TypeTwo Speed

Max. Handle Effort42 kg (125 lbs)

Maximum Operating Pressure700 bar (10,000 psi)

Weight7,0 kg (16 lbs)

Maximum Flow at Rated Pressure0.00247 l/min (2,47 cm3/stroke · .151 in3/stroke · 0.151 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Oil Displacement per Stroke (2nd Stage)2,47 cm³ (0.151 in³)

Oil Displacement per Stroke (1st Stage)11,26 cm³ (0.687 in³)

1st Stage Pressure Rating15 bar (200 psi)

Product TypeFoot Pump

Reservoir Capacity492 cm³ (30 in³)

Valve OperationManual

SeriesP

Pump Power SourceManual

Flow Rate Range at Rated Pressure0 - 20 in³/min

Model Type30 in3 Capacity, Lightweight, Single-acting Compatible, 10,000 psi

Product LineIndustrial Tools

Piston Stroke25,4 mm (1 in)

Documents & CAD

For this product 6

Instruction ManualHydraulic Foot PumpPDF·3.0 MB 3 languages· in one file

Repair Parts SheetP-392FP 700 Bar Foot Pump Repair Parts SheetPDF·501 KB·English

Repair Parts SheetP-392FP 700 Bar Foot PumpPDF·1.0 MB·English

2D DrawingP392FP drawingPDF·504 KB

BrochureP392FP Lightweight Foot Pump; EnglishPDF·217 KB

DocumentBeam Pin Retrofit InstructionsPDF·295 KB·English

Series documents 9· shared by this product series

CertificateEC2B-HANDPUMPS_RevK_Feb2025PDF·585 KB·English

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·9.5 MB·English

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·445 KB·Português

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.6 MB·Français

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·449 KB·Norsk

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.8 MB·Español

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·450 KB·Deutsch

CertificateEC2B-HANDPUMPS_RevJ_Oct2022PDF·603 KB

DocumentPump Service InstructionsPDF·67 KB 2 languages· in one file

CAD Files 3

3D Model

Alternative Names & Search Terms

P392FPP-392FPP 392FPEnerpac P392FPEnerpac P-392FPP392FP foot pumpP392FP hydraulic foot pumpEnerpac P seriesEnerpac P series foot pumpEnerpac hydraulic foot pumptwo speed hydraulic foot pump700 bar hydraulic foot pumplightweight hydraulic foot pumpfoot pump for single-acting cylinders30 in3 usable oil foot pumpfoot pedal hydraulic pumpfoot operated hydraulic pumphigh pressure foot pump
