How can I get a price quote for Enerpac P392ALSS?

You can request a fast quote for Enerpac P392ALSS from Yılsa Engineering. Reference part number CEY-8EF3B033EEE4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac P392ALSS in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac P392ALSS genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac P392ALSS?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

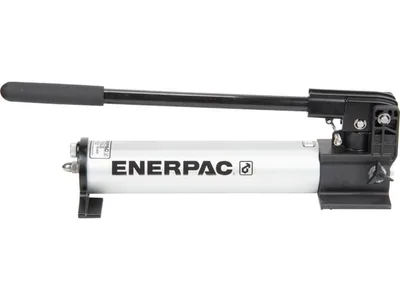

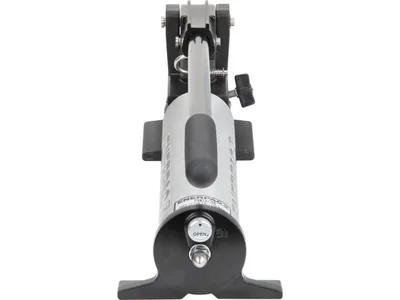

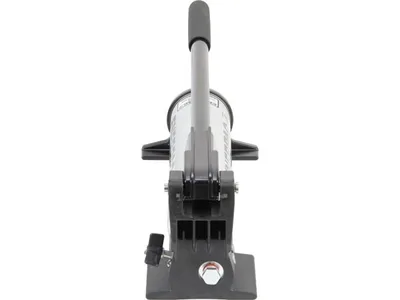

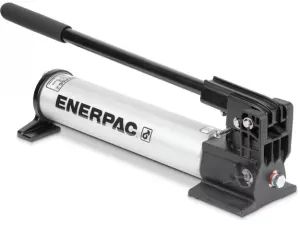

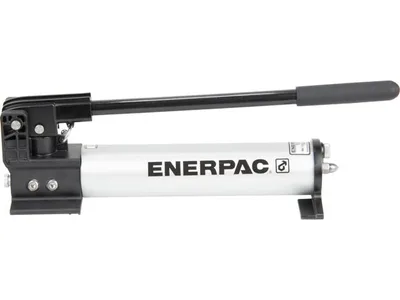

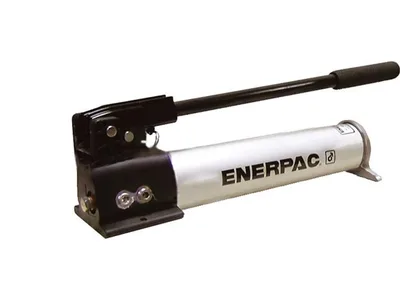

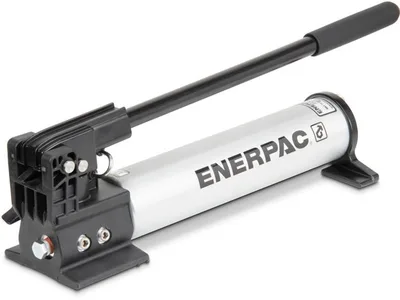

Enerpac P392ALSS 700 bar Hand Pump

Enerpac P392ALSS; 700 bar (10,000 psi), 901 cm³ usable oil, two-speed extreme environment hydraulic hand pump compatible with single-acting cylinders.

EnerpacMFR # P392ALSSSKU # CEY-8EF3B033EEE4

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Max. Handle Effort42,2 kg (93 lbs)

Usable Oil Capacity901 cm³ (55 in³)

Oil Displacement per Stroke (2nd Stage)2,47 cm³ (0.151 in³)

Have questions?Chat on WhatsApp

About This Product

The P392ALSS is a two-speed, manually operated hydraulic hand pump from the Enerpac P series. It has a maximum operating pressure of 700 bar (10,000 psi), 901 cm³ (55 in³) usable oil capacity, and is compatible with single-acting cylinders. It is designed for extreme environment applications. The first stage is rated at 14 bar (200 psi) and the second stage at 700 bar. Oil displacement per stroke is 2.47 cm³ (0.151 in³) in the second stage and 0.687 in³ in the first stage. Maximum handle effort is 42.2 kg (93 lbs) and weight is 4.1 kg. Nickel-plated valves and cylinders, stainless steel pump inserts, Viton® seals and an anodized aluminum reservoir make it suitable for wet environments and applications with heat or chemical exposure.

Features and Benefits

Corrosion resistant, nickel-plated valves and cylinders
Stainless steel pump inserts that will not corrode
Viton® seals provide heat and chemical resistance
Anodized aluminum reservoir and plastic encapsulated pump body resist wet environments
Two-speed operation reduces handle strokes by 78% compared to single-speed pumps
Pump handle locks for easy carrying

Enerpac P392ALSS

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Max. Handle Effort42,2 kg (93 lbs)

Maximum Flow at Rated Pressure0.00247 l/min (.151 in3/stroke · 2,47 cm3/stroke · 0.151 in³/min)

Usable Oil Capacity901 cm³ (55 in³)

Oil Displacement per Stroke (2nd Stage)2,47 cm³ (0.151 in³)

Maximum Operating Pressure700 bar (10,000 psi)

Pump TypeTwo Speed

Oil Displacement per Stroke (1st Stage)11,26 cm³ (0.687 in³)

1st Stage Pressure Rating14 bar (200 psi)

Product TypeHand Pump - Two Speed

Reservoir Capacity901 cm³ (55 in³)

Valve OperationManual

SeriesP

Pump Power SourceManual

Flow Rate Range at Rated Pressure0 - 20 in³/min

Model Type55 in3 Capacity, Extreme Environment, Single-acting Compatible

Cylinder CompatibilitySingle-acting

Product LineIndustrial Tools

Weight4.1 kg (9 lbs)

Piston Stroke25,4 mm (1 in)

Documents & CAD

For this product 3

Instruction ManualHydraulic Hand PumpsPDF·510 KB

Instruction ManualHydraulic Hand PumpsPDF·4.8 MB 4 languages· in one file

Repair Parts SheetPump - HandPDF·150 KB·English

Series documents 7· shared by this product series

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·9.5 MB·English

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·445 KB·Português

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.6 MB·Français

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·449 KB·Norsk

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.8 MB·Español

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·450 KB·Deutsch

BrochureRC-P-V-Series Extreme Environment Products; EnglishPDF·157 KB

CAD Files 2

3D Model

Alternative Names & Search Terms

P392ALSSP-392ALSSP 392ALSSP392 ALSSP 392 ALSSEnerpac P392ALSSEnerpac P-392ALSSP392ALSS hand pumpP392ALSS hydraulic pumpEnerpac P seriesEnerpac P series hydraulic hand pump700 bar two speed hand pump55 in3 usable oil hand pumpextreme environment hydraulic hand pump10,000 psi hydraulic hand pumptwo-speed hydraulic hand pumphand pump for single-acting cylinderscorrosion resistant hydraulic hand pump
