How can I get a price quote for Enerpac P39?

You can request a fast quote for Enerpac P39 from Yılsa Engineering. Reference part number CEY-55221B12C225. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac P39 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac P39 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac P39?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

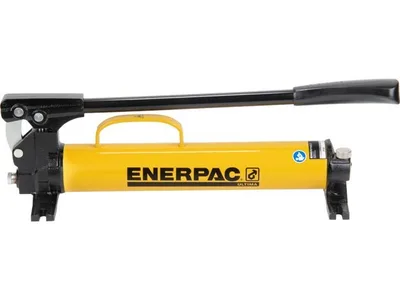

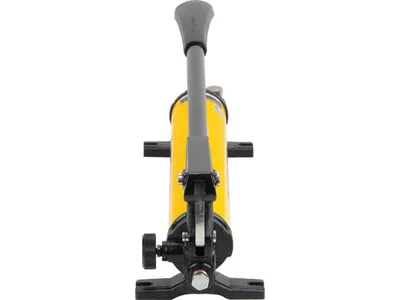

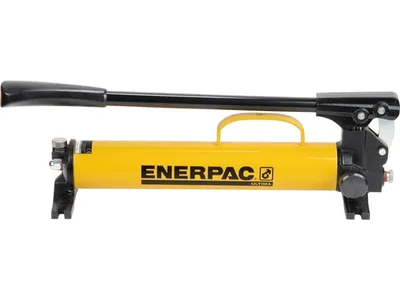

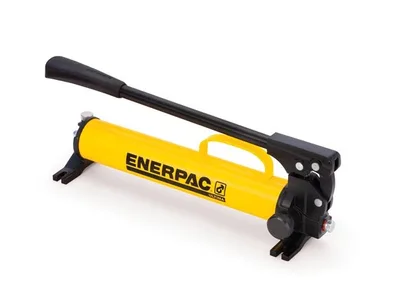

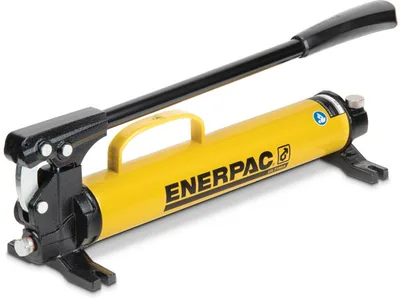

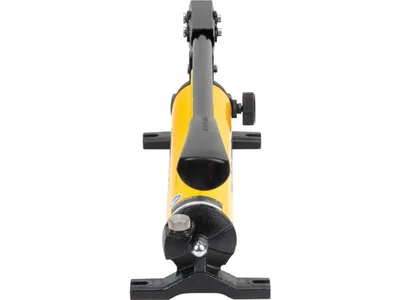

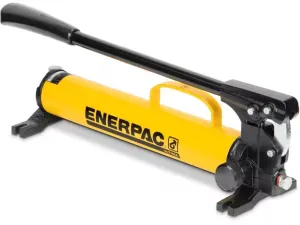

Enerpac P39 700 bar ULTIMA Steel Hand Pump

Enerpac P39; 700 bar max pressure, 672 cm³ usable oil, 6.2 kg, single-speed ULTIMA steel hydraulic hand pump for single-acting cylinders.

EnerpacMFR # P39SKU # CEY-55221B12C225

Cylinder CompatibilitySingle-acting

Usable Oil Capacity672 cm³ (41 in³)

Pump TypeSingle Speed

Max. Handle Effort39 kg (85 lbs)

Maximum Operating Pressure700 bar (10,000 psi)

Weight6,2 kg (13.6 lbs)

Have questions?Chat on WhatsApp

About This Product

The P39 is the single-speed model in the ULTIMA steel hydraulic hand pump series. Maximum operating pressure is 700 bar, usable oil capacity is 672 cm³ (41 in³), oil flow is 2.46 cm³ per stroke and weight is 6.2 kg. Maximum handle effort is 39 kg. Models in the series feature an all-steel construction, a chrome-plated plunger and a wiper system for long-lasting performance. All models except the P39 are two-stage; the P39 operates as a single-speed pump. The reduced-effort handle with ergonomic grip lowers operator fatigue, and the vent-free reservoir prevents oil spills. It is used in industrial applications to power single-acting cylinders and tools.

Features and Benefits

Reduced handle effort and ergonomic grip for less operator fatigue
Vent-free reservoir eliminates spills
Quick-grip handle allows easy transport
Integral reservoir over-pressurization protection
700 bar maximum pressure, 672 cm³ (41 in³) oil capacity

Enerpac P39

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder CompatibilitySingle-acting

Usable Oil Capacity672 cm³ (41 in³)

Pump TypeSingle Speed

Max. Handle Effort39 kg (85 lbs)

Maximum Operating Pressure700 bar (10,000 psi)

Weight6,2 kg (13.6 lbs)

Maximum Flow at Rated Pressure0.00246 l/min (2,46 cm3/stroke · .15 in3/stroke · 0.15 in³/min)

Dimension N140 mm (5.51 in)

Dimension E37 mm (1.48 in)

Dimension P111 mm (4.37 in)

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginChina

2nd Stage Pressure Rating- bar

Dimension D35 mm (1.38 in)

Dimension C30 mm (1.18 in)

Oil Displacement per Stroke (2nd Stage)- cm³

Dimension S8,4 mm (0.33 in)

Dimension B480 mm (18.91 in)

Dimension L163 mm (6.39 in)

Oil Displacement per Stroke (1st Stage)2,46 cm³ (0.15 in³)

Dimension J416 mm (16.37 in)

Dimension H550 mm (21.63 in)

1st Stage Pressure Rating700 bar (10,000 psi)

Product TypeHand Pump - Single Speed

Reservoir Capacity672 cm³ (41 in³)

Valve OperationManual

SeriesP

Pump Power SourceManual

Flow Rate Range at Rated Pressure0 - 20 in³/min

Model Type41 in3 Capacity, Steel, Single-acting Compatible, 0.15 in3 Flow, 10,000 psi

Dimension A383 mm (15.09 in)

Product LineIndustrial Tools

Piston Stroke25,4 mm (1 in)

Documents & CAD

For this product 1

Repair Parts SheetUlTIMA Series Hand Pump, P-39PDF·418 KB·English

Series documents 15· shared by this product series

Instruction ManualHydraulic Hand PumpsPDF·510 KB

Instruction ManualHydraulic Hand PumpsPDF·4.8 MB 4 languages· in one file

Instruction ManualULTIMA Series Hand Pumps, P-18, P-39, P-77, P-80, P-801 and P-84PDF·1.9 MB·Русский

Instruction ManualULTIMA Series Hand Pumps, P-18, P-39, P-77, P-80, P-801 and P-84PDF·28.6 MB 4 languages· in one file

Repair Parts SheetPump - HandPDF·132 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·202 KB·English

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·9.5 MB·English

CertificateEC2B-HANDPUMPS_RevK_Feb2025PDF·585 KB·English

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·445 KB·Português

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.6 MB·Français

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·449 KB·Norsk

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.8 MB·Español

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·450 KB·Deutsch

CertificateEC2B-HANDPUMPS_RevJ_Oct2022PDF·603 KB

BrochureP-Series Steel Hand Pumps; EnglishPDF·464 KB

CAD Files 3

3D Model
