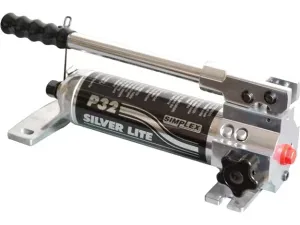

Enerpac P32 700 bar Aluminum Hand Pump

Enerpac P32; 700 bar (10,000 psi) max pressure, 491.6 cm³ usable oil, 3.6 kg, two-speed lightweight aluminum hydraulic hand pump, single-acting.

EnerpacMFR # P32SKU # YLSGWPKY8FXLG7

Dimension G108 mm (4.25 in)

Dimension E140 mm (5.51 in)

Country of OriginTaiwan

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F108 mm (4.25 in)

Dimension D50,8 mm (2 in)

Have questions?Chat on WhatsApp

About This Product

The P32 is a two-speed hydraulic hand pump built entirely from aluminum. Maximum operating pressure is 700 bar (10,000 psi), usable oil capacity is 491.6 cm³ (30 in³) and weight is 3.6 kg. Second-stage oil flow is 1 cm³ (0.06 in³) per stroke, first-stage displacement is 0.43 in³, and first-stage pressure is 200 psi. The aluminum body keeps the pump light and easy to handle. A large knob with fine-pitch threads allows precise load lowering. It is 25% faster per stroke than comparable pumps. It is used with single-acting cylinders and serves as a portable manual power source for high-pressure applications. It is listed under the Simplex brand on the site.

Features and Benefits

All-aluminum construction; light at 3.6 kg and easy to handle
25% faster per stroke than comparable pumps
Precise load lowering with large knob and fine-pitch threads
Two-speed operation; 700 bar (10,000 psi) maximum pressure
491.6 cm³ (30 in³) usable oil capacity

Enerpac P32

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G108 mm (4.25 in)

Dimension E140 mm (5.51 in)

Country of OriginTaiwan

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F108 mm (4.25 in)

Dimension D50,8 mm (2 in)

Dimension C141 mm (5.55 in)

Usable Oil Capacity491,6 cm³ (30 in³)

Oil Displacement per Stroke (2nd Stage)1 cm³ (0.06 in³)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B300 mm (11.81 in)

Oil Displacement per Stroke (1st Stage)7 cm³ (0.43 in³)

Dimension H139,7 mm (5.5 in)

1st Stage Pressure Rating14 bar (200 psi)

Product TypeHand Pump - Lightweight Aluminum

SeriesP Aluminum

Pump Power SourceManual

Model Type30 in3 Capacity, Two Speed, Lightweight Aluminum, 10,000 psi

Cylinder CompatibilitySingle-Acting

Dimension A435,1 mm (17.13 in)

Product LineHydraulic Tools

Weight3,6 kg (8 lbs)
