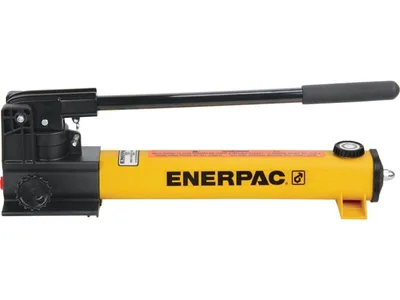

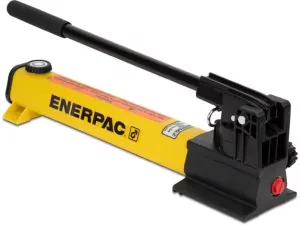

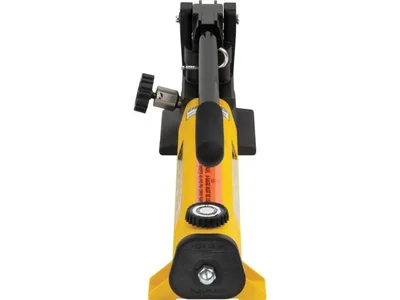

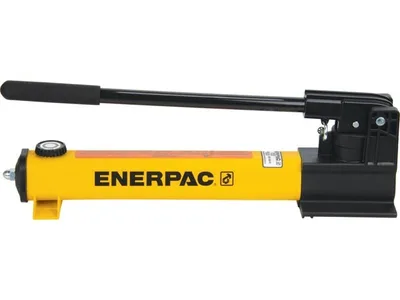

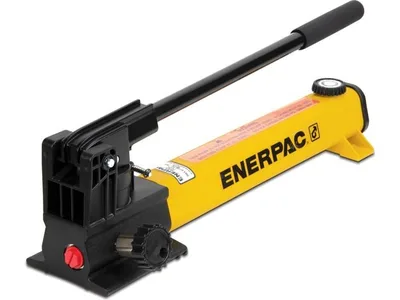

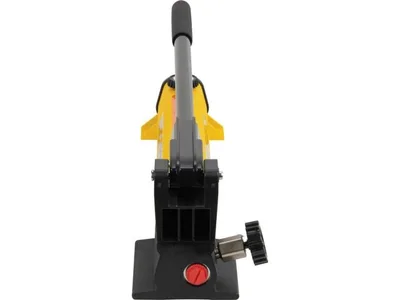

Enerpac P2282 2800 bar Two-Speed Hand Pump

Enerpac P2282; 2800 bar (40,000 psi), 983 cm³ usable oil, two-speed ultra-high-pressure hydraulic hand pump.

EnerpacMFR # P2282SKU # CEY-55221B12D72A

Dimension N120 mm (4.74 in)

Dimension E31 mm (1.24 in)

Maximum Operating Pressure Range> 800 bar (> 11,600 psi)

Country of OriginUnited States

2nd Stage Pressure Rating2800 bar (40,000 psi)

Dimension F133 mm (5.25 in)

Have questions?Chat on WhatsApp

About This Product

P2282 is a two-speed ultra-high-pressure hydraulic hand pump with a maximum operating pressure of 2800 bar (40,000 psi). Usable oil capacity is 983 cm³ (60 in³), 2nd-stage oil flow per stroke is 0.61 cm³ (0.037 in³) and maximum handle effort is 48.1 kg. Two-speed operation provides faster fill to reduce cycle times and requires up to 78% fewer handle strokes than single-speed pumps. It is lighter than steel equivalents, and the handle locks in place for transport. A large release knob gives better control of pressure release. Outlet ports are 3/4"-16 cone for the 40,000 psi rating. Typical industrial uses include lifting, testing, calibration, maintenance and repair.

Features and Benefits

2800 bar (40,000 psi) maximum operating pressure
Two-speed operation for faster fill and shorter cycle times
Up to 78% fewer handle strokes than single-speed pumps
Large release knob for improved control of pressure release
3/4"-16 cone outlet ports for the 40,000 psi rating
Lightweight design; handle locks in place for transport

Enerpac P2282

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N120 mm (4.74 in)

Dimension E31 mm (1.24 in)

Maximum Operating Pressure Range> 800 bar (> 11,600 psi)

Country of OriginUnited States

2nd Stage Pressure Rating2800 bar (40,000 psi)

Dimension F133 mm (5.25 in)

Max. Handle Effort48,1 kg (106 lbs)

Maximum Flow at Rated Pressure0.00061 l/min (.037 in3/stroke · 0,61 cm3/stroke · 0.037 in³/min)

Dimension C35 mm (1.4 in)

Usable Oil Capacity983 cm³ (60 in³)

Oil Displacement per Stroke (2nd Stage)0,61 cm³ (0.037 in³)

Maximum Operating Pressure2800 bar (40,000 psi)

Dimension B558 mm (22 in)

Dimension L228 mm (9 in)

Oil Displacement per Stroke (1st Stage)16,22 cm³ (0.99 in³)

Dimension J29 mm (1.16 in)

Dimension H527 mm (20.75 in)

Dimension M7 mm (0.28 in)

1st Stage Pressure Rating13 bar (200 psi)

Product TypeHand Pump - Two Speed

Reservoir Capacity983 cm³ (60 in³)

Valve OperationManual

SeriesP

Pump Power SourceManual

Flow Rate Range at Rated Pressure0 - 20 in³/min

Model Type60 in3 Capacity, High Pressure, Single-acting Compatible, 40,000 psi

Cylinder CompatibilitySingle-acting

Minimum Operating Pressure2800 bar

Dimension A344 mm (13.56 in)

Product LineIndustrial Tools

Weight6,4 kg (14 lbs)

Piston Stroke25,4 mm (1 in)

Documents & CAD

For this product 4

Instruction ManualPump - HandPDF·593 KB 4 languages· in one file

Repair Parts SheetPump - HandPDF·253 KB·English

2D DrawingP2282 drawingPDF·1.0 MB

CertificateEC2B-P2282_RevA_Oct2022PDF·425 KB

Series documents 7· shared by this product series

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·9.5 MB·English

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·445 KB·Português

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.6 MB·Français

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·449 KB·Norsk

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.8 MB·Español

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·450 KB·Deutsch

BrochureP-11-Series Ultra-High-Pressure Hand Pumps; EnglishPDF·465 KB

CAD Files 3

3D Model
