How can I get a price quote for Enerpac P22?

You can request a fast quote for Enerpac P22 from Yılsa Engineering. Reference part number YLSSIZAY0UAR2WN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac P22 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac P22 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac P22?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

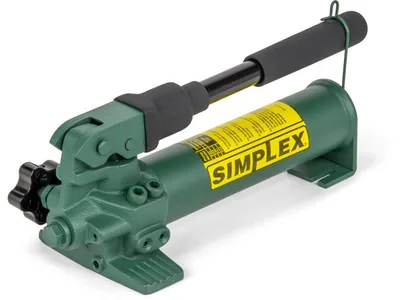

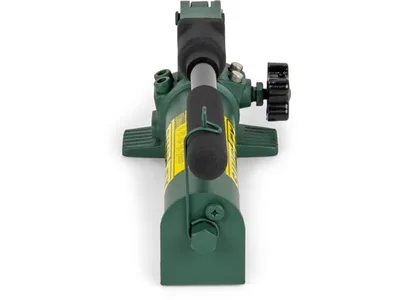

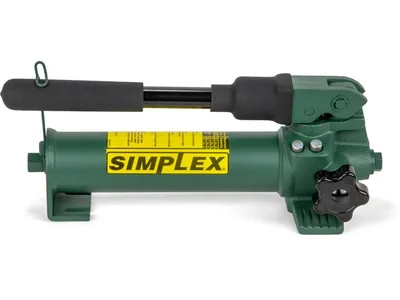

Enerpac P22 700 bar Two-Speed Steel Hand Pump

Enerpac P22; 700 bar, 1.0 cm³/stroke (2nd stage), 280 cm³ usable oil, two-speed compact steel hydraulic hand pump.

EnerpacMFR # P22SKU # YLSSIZAY0UAR2WN

Dimension G125 mm (4.92 in)

Dimension E15 mm (0.59 in)

Country of OriginTaiwan

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F128,5 mm (5.06 in)

Dimension D38,1 mm (1.5 in)

Have questions?Chat on WhatsApp

About This Product

P22 is a two-speed hydraulic hand pump with a compact steel body from the P Steel series. Maximum operating pressure is 700 bar (10,000 psi), 2nd-stage oil flow per stroke is 1.0 cm³ (0.06 in³) and usable oil capacity is 280 cm³ (17 in³). The 1st-stage pressure rating is 200 psi and the 2nd stage is 10,000 psi. The manually operated pump is used with single-acting cylinders and weighs 4.5 kg. It offers a large 3/8" pressure port, low handle effort and a chrome plated plunger and wiper system. Country of origin is Taiwan.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
Two-speed operation for fast and easy use
Large 3/8" pressure port for maximum flow
Low handle effort
Compact and portable at 4.5 kg
Chrome plated plunger and wiper system for long life

Enerpac P22

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G125 mm (4.92 in)

Dimension E15 mm (0.59 in)

Country of OriginTaiwan

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F128,5 mm (5.06 in)

Dimension D38,1 mm (1.5 in)

Dimension C66,5 mm (2.62 in)

Usable Oil Capacity280 cm³ (17 in³)

Oil Displacement per Stroke (2nd Stage)1,0 cm³ (0.06 in³)

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B281,4 mm (11.08 in)

Oil Displacement per Stroke (1st Stage)3,8 cm³ (0.23 in³)

1st Stage Pressure Rating14 bar (200 psi)

Product TypeHand Pump - Compact Steel

SeriesP Steel

Pump Power SourceManual

Model Type17 in3 Capacity, Two Speed, Compact Steel, 10,000 psi

Cylinder CompatibilitySingle-Acting

Dimension A361,4 mm (14.23 in)

Product LineHydraulic Tools

Weight4,5 kg (10 lbs)

Documents & CAD

For this product 1

CertificateEC2B-P22-P42_RevD_Oct2022PDF·426 KB

Alternative Names & Search Terms

P22P-22P 22Enerpac P22Simplex P22Enerpac Simplex P22P22 hand pumpP22 hydraulic hand pumpP22 compact steel pumpEnerpac P Steel seriesSimplex P Steel seriestwo speed hydraulic hand pumpcompact steel hydraulic hand pump700 bar hydraulic hand pump10,000 psi hydraulic hand pump280 cm3 usable oil hand pump17 in3 hydraulic hand pumptwo speed pump for single-acting cylindersmanual hydraulic pump
