How can I get a price quote for Enerpac P20?

You can request a fast quote for Enerpac P20 from Yılsa Engineering. Reference part number YLSPZ8YGE910QM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac P20 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac P20 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac P20?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

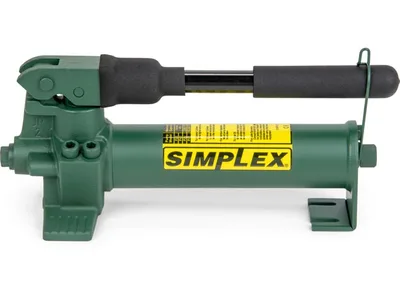

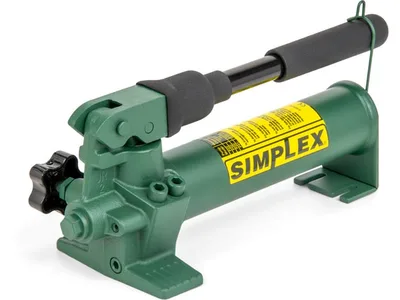

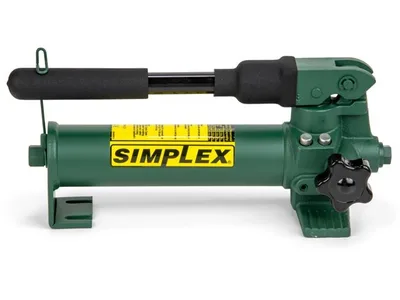

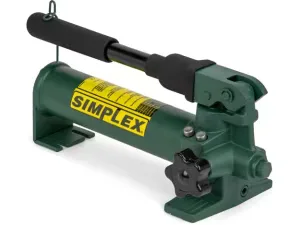

Enerpac Simplex P20 197 bar Compact Hand Pump

Enerpac Simplex P20; compact two-speed steel hydraulic hand pump with 197 bar (2,850 psi) maximum pressure, 250 cm³ usable oil and 4.5 kg weight, for single-acting cylinders.

EnerpacMFR # P20SKU # YLSPZ8YGE910QM

Dimension G136.9 mm (5.39 in)

Dimension E15 mm (0.59 in)

Country of OriginTaiwan

2nd Stage Pressure Rating197 bar (2,850 psi)

Dimension F142 mm (5.59 in)

Dimension D38,1 mm (1.5 in)

Have questions?Chat on WhatsApp

About This Product

Simplex P20 is a compact two-speed steel manual hydraulic hand pump for use with single-acting cylinders. Maximum operating pressure is 197 bar (2,850 psi) and usable oil capacity is 250 cm³ (15 in³); second-stage oil displacement is 2.8 cm³ per stroke. Pump weight is 4.5 kg. It offers a large 3/8" pressure port for maximum flow, low handle effort for easy operation, and a chrome-plated plunger with wiper system for durable performance. Its compact size suits industrial maintenance and assembly work where small single-acting cylinders are driven.

Features and Benefits

Two-speed operation for fast and easy use
Large 3/8" pressure port for maximum flow
Low handle effort for easy operation
Chrome-plated plunger and wiper system for long-lasting performance
Compact steel body, 4.5 kg weight

Enerpac P20

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G136.9 mm (5.39 in)

Dimension E15 mm (0.59 in)

Country of OriginTaiwan

2nd Stage Pressure Rating197 bar (2,850 psi)

Dimension F142 mm (5.59 in)

Dimension D38,1 mm (1.5 in)

Dimension C66,5 mm (2.62 in)

Usable Oil Capacity250 cm³ (15 in³)

Oil Displacement per Stroke (2nd Stage)2,8 cm³ (0.17 in³)

Maximum Operating Pressure197 bar (2,850 psi)

Dimension B281,4 mm (11.08 in)

Oil Displacement per Stroke (1st Stage)12,9 cm³ (0.79 in³)

1st Stage Pressure Rating14 bar (200 psi)

Product TypeHand Pump - Compact Steel

SeriesP Steel

Pump Power SourceManual

Model Type15 in3 Capacity, Two Speed, Compact Steel, 2,850 psi

Cylinder CompatibilitySingle-Acting

Dimension A361,4 mm (14.23 in)

Product LineHydraulic Tools

Weight4,5 kg (10 lbs)

Documents & CAD

Series documents 2· shared by this product series

CertificateEC2B-HANDPUMPS_RevK_Feb2025PDF·585 KB·English

CertificateEC2B-HANDPUMPS_RevJ_Oct2022PDF·603 KB

Alternative Names & Search Terms

P20P 20P-20Enerpac P20Simplex P20Enerpac Simplex P20P20 hydraulic hand pumpP20 hand pumpP20 pumpSimplex P Steel seriesEnerpac P Steel seriescompact steel hydraulic hand pumptwo speed compact hand pump197 bar hydraulic hand pump2,850 psi hydraulic hand pumphand pump for single-acting cylinders250 cm3 usable oil hydraulic pump15 in3 capacity hand pump4.5 kg hydraulic hand pumptwo stage hydraulic hand pump
