How can I get a price quote for Enerpac P1603A?

You can request a fast quote for Enerpac P1603A from Yılsa Engineering. Reference part number YLSZ8W8BAA6OK4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac P1603A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac P1603A genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac P1603A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

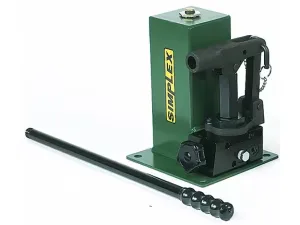

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac Simplex P1603A 827 bar Hand Pump

Enerpac Simplex P1603A; special application hydraulic hand pump with 4.9 cm³ per stroke at 827 bar and 2425.3 cm³ usable oil, for single-acting cylinders.

EnerpacMFR # P1603ASKU # YLSZ8W8BAA6OK4

Country of OriginTaiwan

Max. Handle Effort49 kg (108 lbs)

Usable Oil Capacity2425,3 cm³ (148 in³)

Maximum Operating Pressure827 bar (12,000 psi)

Oil Displacement per Stroke4,9 cm³ (0.30 in³)

Product TypeHand Pump - Special Application

Have questions?Chat on WhatsApp

About This Product

Simplex P1603A is a manual hydraulic hand pump designed for special applications. It is used with single-acting cylinders, with a maximum operating pressure of 827 bar (12,000 psi) and an oil displacement of 4.9 cm³ (0.30 in³) per stroke. Usable oil capacity is 2425.3 cm³ (148 in³), maximum handle effort is 49 kg (108 lbs) and weight is 9.1 kg. It belongs to the P Special series. It is suited to fixed applications where the pump needs to be bolted in place.

Features and Benefits

827 bar (12,000 psi) maximum operating pressure
4.9 cm³ oil displacement per stroke
2425.3 cm³ usable reservoir capacity
Compatible with single-acting cylinders
Ideal for fixed applications where the pump is bolted in place

Enerpac P1603A

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginTaiwan

Max. Handle Effort49 kg (108 lbs)

Usable Oil Capacity2425,3 cm³ (148 in³)

Maximum Operating Pressure827 bar (12,000 psi)

Oil Displacement per Stroke4,9 cm³ (0.30 in³)

Product TypeHand Pump - Special Application

SeriesP Special

Pump Power SourceManual

Model Type0.30 in3 Oil Flow per Stroke at 12,000 psi, 148 in3 Capacity

Cylinder CompatibilitySingle-Acting

Product LineHydraulic Tools

Weight9,1 kg (20 lbs)
