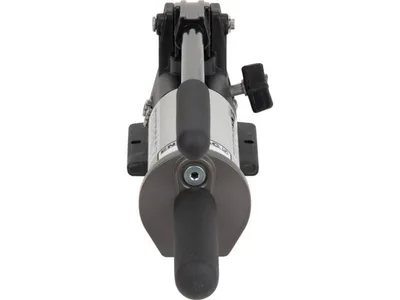

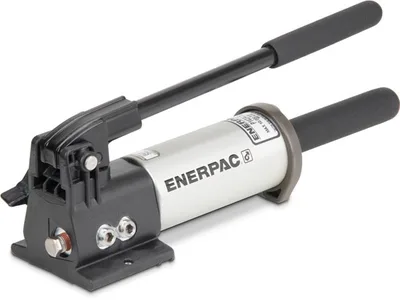

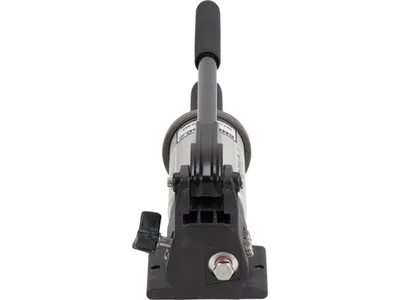

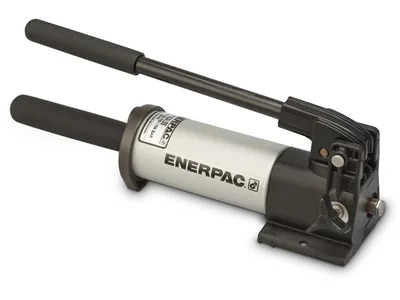

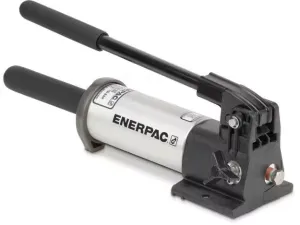

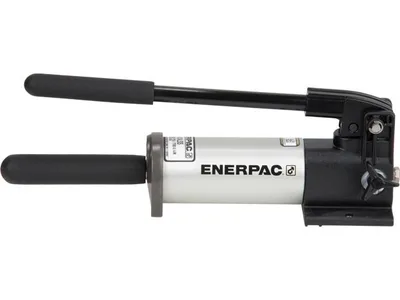

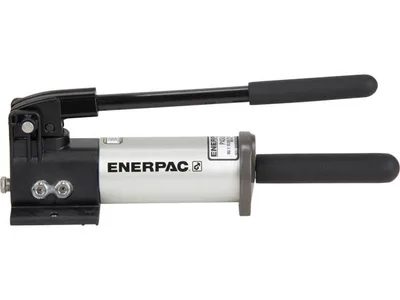

Enerpac P142ALSS 700 bar Hand Pump

Enerpac P142ALSS; 700 bar (10,000 psi), 327 cm³ (20 in³) usable oil, two-speed extreme environment hydraulic hand pump compatible with single-acting cylinders.

EnerpacMFR # P142ALSSSKU # CEY-8EF3B033EF34

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Max. Handle Effort35,4 kg (78 lbs)

Usable Oil Capacity327 cm³ (20 in³)

Oil Displacement per Stroke (2nd Stage)0,90 cm³ (0.055 in³)

Have questions?Chat on WhatsApp

About This Product

The P142ALSS is a two-speed, manually operated hydraulic hand pump from the Enerpac P series. It has a maximum operating pressure of 700 bar (10,000 psi), 327 cm³ (20 in³) usable oil capacity, and is compatible with single-acting cylinders. It is designed for extreme environment applications. The first stage is rated at 14 bar (200 psi) and the second stage at 700 bar. Oil displacement per stroke is 0.90 cm³ (0.055 in³) in the second stage and 0.221 in³ in the first stage. Maximum handle effort is 35.4 kg (78 lbs) and weight is 2 kg. Nickel-plated valves and cylinders, stainless steel pump inserts, Viton® seals and an anodized aluminum reservoir make it suitable for wet environments and applications with heat or chemical exposure.

Features and Benefits

Corrosion resistant, nickel-plated valves and cylinders
Stainless steel pump inserts that will not corrode
Viton® seals provide heat and chemical resistance
Anodized aluminum reservoir and plastic encapsulated pump body resist wet environments
Two-speed operation reduces handle strokes by 78% compared to single-speed pumps
Pump handle locks for easy carrying

Enerpac P142ALSS

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Max. Handle Effort35,4 kg (78 lbs)

Maximum Flow at Rated Pressure0.0009 l/min (.055 in3/stroke · 0,9 cm3/stroke · 0.055 in³/min)

Usable Oil Capacity327 cm³ (20 in³)

Oil Displacement per Stroke (2nd Stage)0,90 cm³ (0.055 in³)

Maximum Operating Pressure700 bar (10,000 psi)

Pump TypeTwo Speed

Oil Displacement per Stroke (1st Stage)3,62 cm³ (0.221 in³)

1st Stage Pressure Rating14 bar (200 psi)

Product TypeHand Pump - Two Speed

Reservoir Capacity327 cm³ (20 in³)

Valve OperationManual

SeriesP

Pump Power SourceManual

Flow Rate Range at Rated Pressure0 - 20 in³/min

Model Type20 in3 Capacity, Extreme Environment, Single-acting Compatible

Cylinder CompatibilitySingle-acting

Product LineIndustrial Tools

Weight2 kg (4.5 lbs)

Piston Stroke12,7 mm (0.5 in)

Documents & CAD

For this product 1

Repair Parts SheetPump - HandPDF·334 KB·English

Series documents 7· shared by this product series

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·9.5 MB·English

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·445 KB·Português

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.6 MB·Français

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·449 KB·Norsk

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.8 MB·Español

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·450 KB·Deutsch

BrochureRC-P-V-Series Extreme Environment Products; EnglishPDF·157 KB
