How can I get a price quote for Enerpac NS7095?

You can request a fast quote for Enerpac NS7095 from Yılsa Engineering. Reference part number CEY-7B4B2D9986CC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac NS7095 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac NS7095 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac NS7095?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

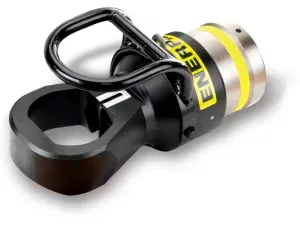

Enerpac NS7095 917 kN Nut Splitter

Enerpac NS7095; 917 kN (103 ton) capacity, 700 bar operating pressure, 70–95 mm hex nut range, single-acting spring return hydraulic nut splitter.

EnerpacMFR # NS7095SKU # CEY-7B4B2D9986CC

Dimension G432 mm (17 in)

Country of OriginUnited Kingdom

Dimension F201 mm (7.9 in)

Maximum Operating Pressure700 bar (10,000 psi)

Capacity917 kN (103 ton)

Bolt RangeM45 - M64 (1.75 - 2.50 in)

Have questions?Chat on WhatsApp

About This Product

The NS7095 is a hydraulic nut splitter from the Enerpac NS series. It has a capacity of 917 kN (103 ton), operates at up to 700 bar (10,000 psi) and splits hex nuts from 70 to 95 mm (2.75–3.88 in). It suits bolts from M45 to M64. It uses a single-acting, spring return cylinder. Oil capacity is 377 cm³ and weight is 38.5 kg. The maximum hardness it can split is HRC 44. The replacement blade model is NSB70. It is designed for standard ANSI B16.6/BS1560 flanges. It is used in maintenance, assembly and dismantling work where seized or corroded nuts must be cut without damaging the bolt threads.

Features and Benefits

Specially designed for standard ANSI B16.6/BS1560 flanges
Single-acting, spring return cylinder
Tri-blade technology provides three cutting surfaces on a single blade
Interchangeable heads provide wide nut range flexibility
Preset scale allows controlled blade extension, protecting bolt threads
Grip tape and handle included; nickel-plated body and internal pressure relief valve for overload protection

Enerpac NS7095

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G432 mm (17 in)

Country of OriginUnited Kingdom

Dimension F201 mm (7.9 in)

Maximum Operating Pressure700 bar (10,000 psi)

Capacity917 kN (103 ton)

Bolt RangeM45 - M64 (1.75 - 2.50 in)

Dimension E81 mm

Max. Allowable Hardness to SplitHRC 44

ApplicationsCut

Dimension D8,0 mm

Oil Capacity377 cm³ (23.0 in³)

Product TypeNut Splitter

SeriesNS

Hexagon Nut Range70 - 95 mm (2.75 - 3.88 in)

Cutter Head Return TypeSingle-Acting, Spring Return

Dimension A160 mm (6.3 in)

Product LineIndustrial Tools, Bolting Tools

Weight38,5 kg (84.9 lbs)

Dimension C180 mm

Dimension B32 mm

Documents & CAD

For this product 3

Instruction ManualNS Series Hydraulic Nut SplitterPDF·4.8 MB 4 languages· in one file

Repair Parts SheetNS Series Hydraulic Nut SplitterPDF·1.2 MB·English

CertificateEC2B-NS_RevG_May2016PDF·80 KB
