How can I get a price quote for Enerpac MVPM5?

You can request a fast quote for Enerpac MVPM5 from Yılsa Engineering. Reference part number CEY-7B4B2D9996F9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac MVPM5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac MVPM5 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac MVPM5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

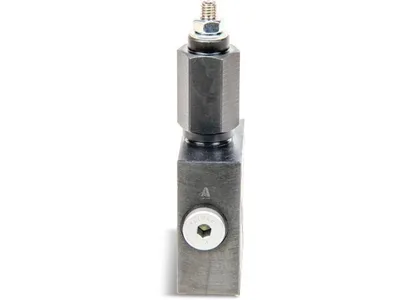

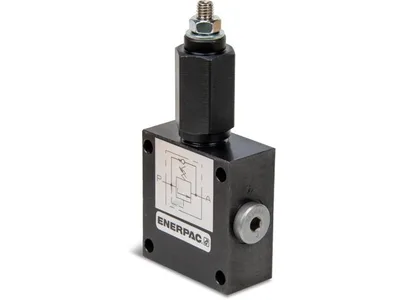

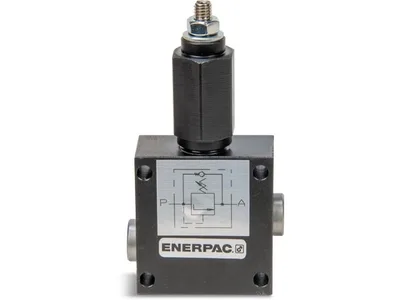

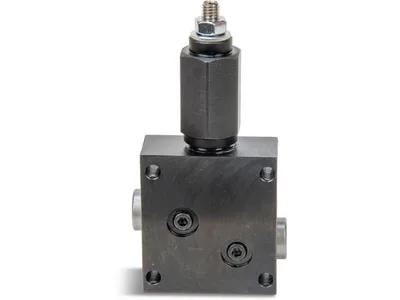

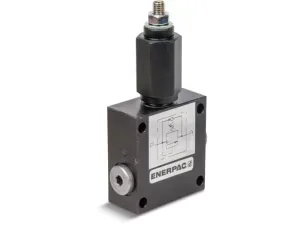

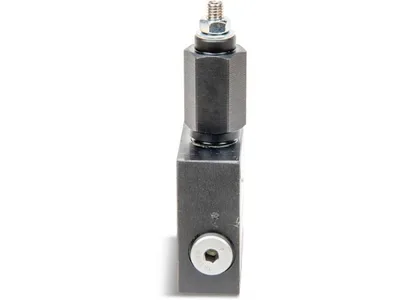

Enerpac MVPM5 Sequence Valve

Enerpac MVPM5; manifold-mount sequence valve, 35–350 bar pressure adjustment range, 6 L/min maximum oil flow.

EnerpacMFR # MVPM5SKU # CEY-7B4B2D9996F9

Pressure Adjustment Range35 - 350 bar (500 - 5,000 psi)

Country of OriginUnited States

Dimension C1.12 in

Max. Oil Flow366 in³/min

Oil PortsG 1/4"

Maximum Operating Pressure350 bar (5,000 psi)

Have questions?Chat on WhatsApp

About This Product

MVPM5 is a manifold-mount sequence valve from the MVP series. It blocks oil to a secondary hydraulic circuit until pressure in the primary circuit reaches a preset level. A built-in check system lets oil flow back without external piping. Pressure adjustment range is 35–350 bar (500–5,000 psi) and maximum oil flow is 6 L/min (366 in³/min). Check valve opening pressure is 1.4 bar (20 psi), oil ports are G 1/4" and weight is 1.3 kg. It has manifold mounting ports and manifold O-rings are included.

Features and Benefits

Direct, accurate pressure setting
35–350 bar (500–5,000 psi) setting secured with lock nut
Built-in check system for return flow without external piping
Manifold mounting ports
Manifold O-rings included

Enerpac MVPM5

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Pressure Adjustment Range35 - 350 bar (500 - 5,000 psi)

Country of OriginUnited States

Dimension C1.12 in

Max. Oil Flow366 in³/min

Oil PortsG 1/4"

Maximum Operating Pressure350 bar (5,000 psi)

Product TypeSequence Valve

SeriesMVP

Maximum Oil Flow6,0 l/min

Check Valve Opening Pressure1,4 bar (20 psi)

Dimension A28,5 mm (1.12 in)

Product LineWorkholding Tools

Weight1,3 kg (2.9 lbs)

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualSequence ValvesPDF·160 KB·English

Repair Parts SheetValve - SequencePDF·80 KB·English

Repair Parts SheetValve - SequencePDF·75 KB 3 languages· in one file

BrochureWorkholding Valves, EnglishPDF·1.8 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

MVPM5MVPM-5MVPM 5Enerpac MVPM5Enerpac MVPM-5MVPM5 sequence valveMVPM5 hydraulic sequence valveEnerpac MVP seriesMVP series sequence valvehydraulic sequence valvemanifold type sequence valvemanifold mounted sequence valve350 bar sequence valve35-350 bar adjustable sequence valve6 L/min sequence valveG 1/4 sequence valveworkholding sequence valve
