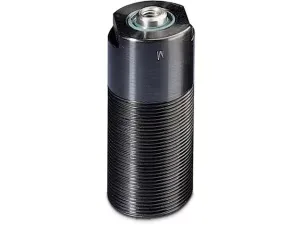

Enerpac MRS2 26.7 kN Clamping Cylinder

Enerpac MRS2; 26.7 kN (6,000 lbs) capacity, 2.3 mm (0.09 in) effective clamping stroke, 350 bar, single-acting positive clamping hydraulic cylinder.

EnerpacMFR # MRS2SKU # CEY-55221B1195C1

Dimension E17,3 mm (0.68 in)

Oil Capacity (Advance)4,26 cm³ (0.26 in³)

Required Operating Pressure350 bar (5000 psi)

Dimension C84,1 mm (3.31 in)

Maximum Operating Pressure350 bar (5,000 psi)

Dimension T38,1 mm (1.5 in)

Have questions?Chat on WhatsApp

About This Product

The MRS2 is a positive clamping hydraulic cylinder from the MRS workholding series. At 5,000 psi (350 bar) it provides about 26.7 kN (6,000 lbs) of force, with an effective clamping stroke of 2.3 mm (0.09 in). Clamping force is maintained by heavy disk springs, while hydraulic pressure is used for release. The threaded body and hollow plunger simplify mounting directly into fixtures and retrofitting from mechanical clamping. Oil capacity is 4.26 cm³ and weight is approximately 0.9 kg. It is used in fixture and machine table applications requiring workpiece clamping and pushing.

Features and Benefits

Heavy disk springs maintain clamping force; hydraulic pressure is used for release
Single-acting design allows easy hydraulic system setup
Hollow plunger allows easy retrofit from mechanical clamping
Custom buttons can be fitted into the plunger to clamp directly against the workpiece
Threaded body allows mounting directly into the fixture plate
Internally threaded plunger allows easy use of accessories

Enerpac MRS2

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E17,3 mm (0.68 in)

Oil Capacity (Advance)4,26 cm³ (0.26 in³)

Required Operating Pressure350 bar (5000 psi)

Dimension C84,1 mm (3.31 in)

Maximum Operating Pressure350 bar (5,000 psi)

Dimension T38,1 mm (1.5 in)

ApplicationsClamp, Push

Dimension KM10 x1,50 mm

Product TypeWorkholding Positive Clamping Cylinder

SeriesMRS

Cylinder Capacity Advance at 5000 psi6000 lbs

Dimension J7,1 mm (0.28 in)

Dimension A89,9 mm (3.54 in)

Product LineWorkholding Tools

Weight0,9 kg (2 lbs)

Max. Tensioning Stroke2,3 mm (0.09 in)

Effective Clamping Stroke2,3 mm (0.09 in)

Dimension D1M48 X 1,5 mm

Maximum Cylinder Capacity (Advance)6000 lbs

Country of OriginNetherlands

Dimension F39,9 mm (1.57 in)

Dimension D48,0 mm (1.89 in)

Dimension B87,9 mm (3.46 in)

Center Hole Diameter Y0.43 in

Plunger TypeSolid

Cylinder MaterialSteel

Dimension H20,1 mm (0.79 in)

Dimension W50,0 mm (1.97 in)

Cylinder Capacity at 350 bar (Advance)26,7 kN

Return TypeSingle-Acting, Spring Return

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualClamping Cylinder, Spring LoadedPDF·140 KB·English

Repair Parts SheetCylinderPDF·588 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
