How can I get a price quote for Enerpac MPFL100V?

You can request a fast quote for Enerpac MPFL100V from Yılsa Engineering. Reference part number CEY-55221B1343B1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac MPFL100V in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac MPFL100V genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac MPFL100V?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

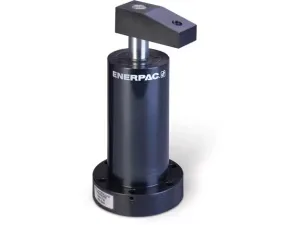

Enerpac MPFL100V 8.9 kN Collet-Lok Swing Cylinder

Enerpac MPFL100V; 8.9 kN force, 28.2 mm stroke, 100–350 bar pressure, lower flange left turn Collet-Lok swing cylinder (metric).

EnerpacMFR # MPFL100VSKU # CEY-55221B1343B1

Dimension H110 mm

Dimension V9 mm

Maximum Operating Pressure350 bar

Dimension T64 mm

Dimension K30 mm

Dimension J19 mm

Have questions?Chat on WhatsApp

About This Product

The MPFL100V is a lower flange, left turn Collet-Lok swing cylinder from the Enerpac MPF series. Force is 8.9 kN, stroke is 28.2 mm and operating pressure ranges from 100 to 350 bar; the standard clamp arm is the MA1050. Clamp effective area is 3.2 cm², unclamp effective area is 7.1 cm², unclamp oil capacity is 19.9 cm³ and maximum oil flow is 1.0 L/min. Mounting thread is M8 x 1.25. It is used in workholding fixtures where the clamp arm must swing over the workpiece to clamp it.

Features and Benefits

8.9 kN force, 28.2 mm stroke
Collet-Lok swing cylinder; left turn, lower flange
100–350 bar operating pressure range
Standard clamp arm MA1050
M8 x 1.25 mounting thread; metric dimensions

Enerpac MPFL100V

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension H110 mm

Dimension V9 mm

Maximum Operating Pressure350 bar

Dimension T64 mm

Dimension K30 mm

Dimension J19 mm

Product TypeCollet Lok Swing Cylinder

SeriesMPF

Mounting Thread JM8 x 1,25

Cylinder Effective Area (Clamp)3,2 cm²

Standard Clamp ArmMA1050

Dimension C192,9 mm

Dimension D1100 mm

Dimension A222,9 mm

Dimension P50 mm

Country of OriginNetherlands

Dimension F22,3 mm

Oil Capacity (Unclamp)19,9 cm³

Dimension W14 mm

Dimension H212,5 mm

Dimension U84,1 mm

Dimension D68 mm

Dimension JM20 x 1,5 mm

Cylinder Effective Area (Unclamp)7,1 cm²

Dimension C125 mm

Maximum Oil Flow1,0 l/min

Dimension J2 Min. Depth19 mm

Fixture Hole Dimension D368,6 ±0,3 mm

Stroke28.2 mm

Minimum Operating Pressure100 bar

Maximum Force8,9 kN

Weight3,5 kg

Oil Capacity (Clamp)9,0 cm³

Dimension B194,7 mm

Dimension QM10 x 1,5 mm

Left Turning Angle90° °

Clamp Stroke12 mm

Clamping Force8,9 kN

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualManifold Mounting Instructions - Collet-Lok Products Equipped with Manifold PortsPDF·964 KB 2 languages· in one file

Repair Parts SheetCollet-lok Swing CylindersPDF·1.2 MB·English

BrochureWorkholding Collet-Lok® Cylinders, EnglishPDF·3.7 MB

CAD Files 5

3D Model
