How can I get a price quote for Enerpac MP1000?

You can request a fast quote for Enerpac MP1000 from Yılsa Engineering. Reference part number CEY-937FC77CCAC1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac MP1000 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac MP1000 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac MP1000?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

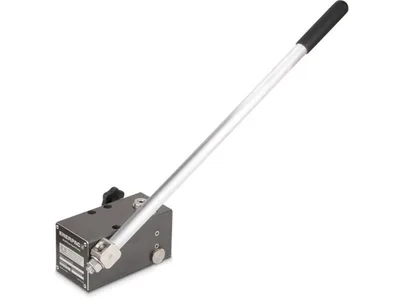

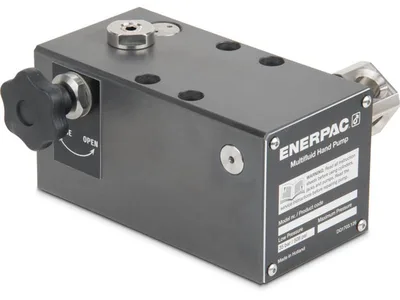

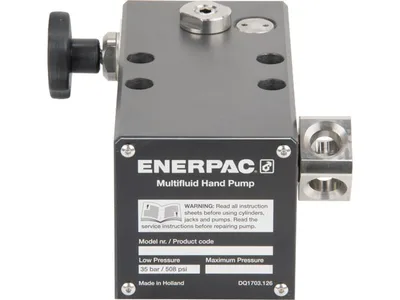

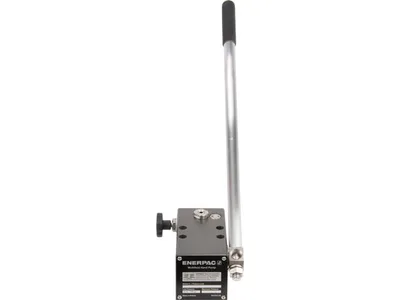

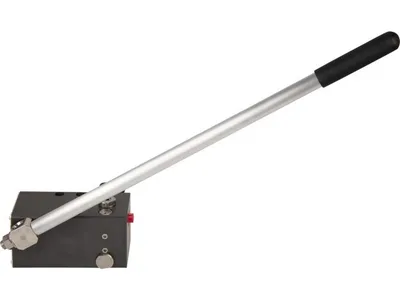

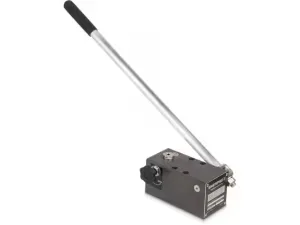

Enerpac MP1000 1000 bar Hydraulic Hand Pump

Enerpac MP1000; 1000 bar (14,500 psi) maximum pressure, two-speed, multifluid hydraulic hand pump for single-acting cylinders.

EnerpacMFR # MP1000SKU # CEY-937FC77CCAC1

Maximum Operating Pressure Range> 800 bar (> 11,600 psi)

Country of OriginNetherlands

2nd Stage Pressure Rating1000 bar (14,500 psi)

Max. Handle Effort45 kg (99 lbs)

Oil Displacement per Stroke (2nd Stage)2,2 cm³ (0.12 in³)

Maximum Operating Pressure1000 bar (14,500 psi)

Have questions?Chat on WhatsApp

About This Product

The MP1000 is a two-speed, multifluid hydraulic hand pump with a maximum operating pressure of 1000 bar (14,500 psi). It has manual valve operation and is compatible with single-acting cylinders. The first stage operates up to 500 psi and displaces 52.6 cm³ per stroke; the second stage displaces 2.2 cm³ per stroke at 1000 bar. Piston stroke is 26.5 mm, maximum handle effort is 45 kg and weight is 6.6 kg (14.5 lb). Country of origin is the Netherlands. An anodized aluminum housing and stainless steel internal pumping components provide corrosion resistance. Standard nitrile seals suit demineralized water, oil/water emulsions, water glycols, mineral oils and hydraulic fluids; custom EPDM seals are available for Skydrol or brake fluids. The pump requires an external reservoir.

Features and Benefits

Two-speed operation up to 1000 bar (14,500 psi)
Superior corrosion resistance with anodized aluminum housing and stainless steel internal pumping components
Standard nitrile seals; custom EPDM seals available for Skydrol or brake fluids
Externally adjustable pressure relief valve
1/4" NPTF gauge port
Requires the use of an external reservoir

Enerpac MP1000

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range> 800 bar (> 11,600 psi)

Country of OriginNetherlands

2nd Stage Pressure Rating1000 bar (14,500 psi)

Max. Handle Effort45 kg (99 lbs)

Maximum Flow at Rated Pressure0.0022 l/min (.12 in3/stroke · 2,2 cm3/stroke · 0.12 in³/min)

Oil Displacement per Stroke (2nd Stage)2,2 cm³ (0.12 in³)

Maximum Operating Pressure1000 bar (14,500 psi)

Oil Displacement per Stroke (1st Stage)52,6 cm³ (3.2 in³)

1st Stage Pressure Rating35 bar (500 psi)

Product TypeHand Pump - Two Speed

Valve OperationManual

SeriesMP

Pump Power SourceManual

Flow Rate Range at Rated Pressure0 - 20 in³/min

Cylinder CompatibilitySingle-acting

Minimum Operating Pressure1000 bar

Product LineIndustrial Tools

Weight6,6 kg (14.5 lbs)

Piston Stroke26,5 mm (1.04 in)

Documents & CAD

For this product 1

2D DrawingMP1000 drawingPDF·140 KB

Series documents 11· shared by this product series

Repair Parts SheetHand Pump, Multi Fluid RPSPDF·267 KB

CertificateEC2B-HANDPUMPS_RevK_Feb2025PDF·585 KB·English

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·9.5 MB·English

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·445 KB·Português

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.6 MB·Français

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·449 KB·Norsk

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·8.8 MB·Español

CertificateLX70 Hydraulic Oil Safety Data SheetPDF·450 KB·Deutsch

CertificateEC2B-HANDPUMPS_RevJ_Oct2022PDF·603 KB

BrochureMP-Series Multifluid Hand Pumps; EnglishPDF·117 KB

DocumentHand Pump, Multi Fluid Instruction SheetPDF·683 KB 4 languages· in one file

CAD Files 3

3D Model
