How can I get a price quote for Enerpac MM760E?

You can request a fast quote for Enerpac MM760E from Yılsa Engineering. Reference part number YLS1BWUIODZFV1W. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac MM760E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac MM760E genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac MM760E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

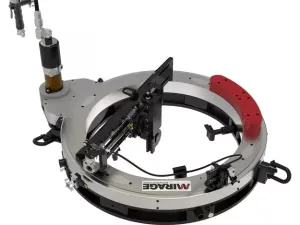

Enerpac MM760E 0-762 mm Flange Facing Machine

Enerpac MM760E; 0-762 mm (0-30") facing diameter, 459-775 mm clamping range, pneumatic external mount flange facing machine.

EnerpacMFR # MM760ESKU # YLS1BWUIODZFV1W

Dimension G410 mm (16.1 in)

Dimension E747 mm (29.4 in)

Tool Post Stroke Z-Axis0 - 102 mm (0 - 4 in)

Dimension F362 mm (14.25 in)

Dimension D1085 mm (42.7 in)

Clamping Range459 - 775 mm (18.1 - 30.5 in)

Have questions?Chat on WhatsApp

About This Product

The MM760E is a robust externally mounted flange facing machine used to produce continuous groove (gramophone) finishes to ASME standard. Facing diameter is 0-762 mm (0-30") and clamping range is 459-775 mm. The pneumatic version runs on a 90 psi supply at up to 16 rpm. Tool post stroke is 0-102 mm (0-4") on the Z axis and 0-356 mm (0-14") on the X axis, with feed rates of 0.1-0.8 mm/rev. The machine has 4 clamping locators. Applications include facing heat exchanger flanges and other large flanges such as crane pedestals. Standard supply includes a toolkit with tools and inserts, an air filter lubricator and hose connections.

Features and Benefits

Continuous variable auto-feed for ASME standard finishes
Choice of pneumatic, hydraulic or electric motors powered from an external source
Quick-set radial clamping adjustment and quick-set axial adjustment jaws
Heavy duty bearing construction for high metal removal rates and accuracy
Heat exchanger kits for back facing and slot machining in one operation

Enerpac MM760E

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G410 mm (16.1 in)

Dimension E747 mm (29.4 in)

Tool Post Stroke Z-Axis0 - 102 mm (0 - 4 in)

Dimension F362 mm (14.25 in)

Dimension D1085 mm (42.7 in)

Clamping Range459 - 775 mm (18.1 - 30.5 in)

Minimum Facing Diameter0 mm

Dimension C787 mm (31 in)

Dimension B544 - 229 mm (21.4 - 9 in)

Clamping Locators4

Drive TypePneumatic

Dimension I455 mm (17.9 in)

Dimension H168 mm (6.6 in)

Product TypeOutside Mount Flange Facing Machines

Supply Required6.2 bar (90 psi)

Tool Post Stroke X-Axis0 - 14 in

SeriesMME

Max. Speed16 rpm

Tool Post Stroke (X Axis)0 - 356 mm

Maximum Facing Diameter762 mm

X & Y Axis Feed Rate per Rev0.1 - 0.8 mm (0.004 - 0.31 in)

Dimension A459 - 775 mm (18.1 - 30.5 in)

Min. Facing Diameter0 in

Product LineMachining Tools

Weight401 kg (883 lbs)

Max. RPM (300 scfm)47 rpm

Max. Facing Diameter30 in

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualMME Series Externally Mounted Flange Facing MachinePDF·10.8 MB·English

BrochureMM-E_Series_External_Mount_Flange_Facing_Machines_EN-AUPDF·163 KB
