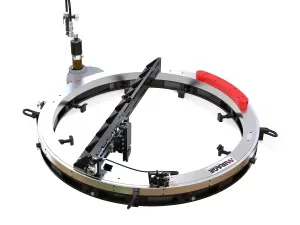

Enerpac MM1500E-H 1524 mm Flange Facing Machine
Enerpac MM1500E-H; 0-1524 mm (0-60") facing diameter, 55 bar hydraulic-driven external mount flange facing machine.
Dimension G410 mm (16.1 in)
Dimension E1128 mm (44.4 in)
Supply Required30 l/min (8 GPM)
Tool Post Stroke Z-Axis0 - 102 mm (0 - 4 in)
Dimension F362 mm (14.25 in)
Dimension D1847 mm (72.7 in)
About This Product
MM1500E-H is the hydraulic-driven external mount flange facing machine of the MME series. It offers a 0-1524 mm (0-60") facing diameter and produces continuous groove gramophone finishes to ASME standard.
Hydraulic supply requirement is 55 bar (800 psi) at 30 L/min (8 GPM), with a maximum speed of 14 rpm. The clamping range is 1221-1537 mm, tool post stroke is 0-102 mm on the Z axis and 0-356 mm on the X axis, and feed rate is 0.1-0.8 mm/rev. The machine has 8 clamping locators.
It is used for facing heat exchanger flanges and other large flanges such as crane pedestals.
Features and Benefits
- Hydraulic drive: 55 bar (800 psi), 30 L/min
- Continuous groove gramophone finishes to ASME standard
- Continuous variable auto-feed (0.1-0.8 mm/rev)
- Quick-set radial clamping and axial adjustment jaws
- Heavy duty bearing construction for high metal removal rates
- Heat exchanger kits for back facing and slot machining in one operation
Enerpac MM1500E-H
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimension G410 mm (16.1 in)
Dimension E1128 mm (44.4 in)
Supply Required30 l/min (8 GPM)
Tool Post Stroke Z-Axis0 - 102 mm (0 - 4 in)
Dimension F362 mm (14.25 in)
Dimension D1847 mm (72.7 in)
Clamping Range1221 - 1537 mm (48.1 - 60.5 in)
Dimension C1549 mm (61 in)
Dimension B1306 - 991 mm (51.4 - 39 in)
Clamping Locators8
Dimension H168 mm (6.6 in)
Product TypeOutside Mount Flange Facing Machines
Supply Required55 bar (800 psi)
Tool Post Stroke X-Axis0 - 14 in
SeriesMME
Max. Speed14 rpm
Tool Post Stroke (X Axis)0 - 356 mm
X & Y Axis Feed Rate per Rev0.1 - 0.8 mm (0.004 - 0.31 in)
Dimension A1221 - 1537 mm (48.1 - 60.5 in)
Product LineMachining Tools
