How can I get a price quote for Enerpac ML40W?

You can request a fast quote for Enerpac ML40W from Yılsa Engineering. Reference part number YLSTHHFLGHBMAL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ML40W in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ML40W genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ML40W?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

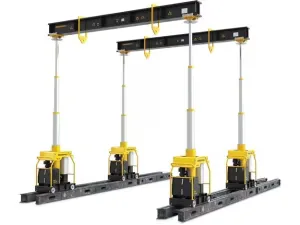

Enerpac ML40W 45 Ton Portable Hydraulic Gantry

Enerpac ML40W; 45 ton (400 kN) capacity, 5500 mm maximum lifting height, three-stage cylinder, 380–415 VAC portable hydraulic gantry.

EnerpacMFR # ML40WSKU # YLSTHHFLGHBMAL

Stage 3 Maximum Capacity (4 Legs)45 ton

Wheel Base K950 mm (37.4 in)

Stage 1 Maximum Height B3000 mm (9.84 ft)

Maximum Lifting Height5500 mm (18 ft)

Stage 3 Max. Capacity (4 Legs)400 kN

Weight per Leg (with Oil)1300 kg (2970 lbs)

Have questions?Chat on WhatsApp

About This Product

The ML40W is a mini hydraulic gantry system from the ML series. It has a 4-leg capacity of 45 tons (400 kN) and its three-stage double-acting cylinder lifts full capacity up to 5500 mm. Stage heights are 3000, 4200 and 5500 mm, with a retracted height of 1900 mm. The hydraulics are self-contained. Stroke synchronization keeps the lift level regardless of load distribution; in PLC-controlled lifting, stroke encoder feedback maintains even height on all legs and stops the lift if necessary. Powered travel under load is standard on all models, and a handheld pendant controls all four legs at once. Its compact design fits through standard doorways and is easy to move and set up. It is used to lift, lower and transport machinery and equipment.

Features and Benefits

Compact design for use in areas with limited space
Self-contained hydraulics with synchronized lifting for enhanced safety
Powered travel under load standard on all models
Three-stage double-acting cylinder provides extended lifting capacity (up to 5500 mm)
Handheld pendant control can operate four legs simultaneously
Compatible with standard Enerpac gantry accessories; ASME B30.1 compliant and load tested under witness of Lloyd's Register

Enerpac ML40W

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stage 3 Maximum Capacity (4 Legs)45 ton

Wheel Base K950 mm (37.4 in)

Stage 1 Maximum Height B3000 mm (9.84 ft)

Maximum Lifting Height5500 mm (18 ft)

Stage 3 Max. Capacity (4 Legs)400 kN

Weight per Leg (with Oil)1300 kg (2970 lbs)

ApplicationsLift, Lower, Transport

Retracted Height A1900 mm (6.23 ft)

Base Length D1200 mm (47.25 in)

Base Width E750 mm (29.5 in)

Base Height C1390 mm (54.75 in)

Gantry Voltage380-415 V, 3 phase, 2 A

Track Gauge (F)610 mm (24 in)

Product TypePortable Mini Gantry

Stage 2 Maximum Height B4200 mm (13.78 ft)

Maximum Capacity (4 Legs)400 kN (40 ton · 45 ton)

SeriesML

Beam Plate J71 mm (2.8 in)

Beam Plate G350 mm (13.78 in)

Model Type45 Imperial Tons Max Capacity 4 Legs, 380-415 V, 3 phase, 2 A

Stage 1 Max. Capacity (4 Legs)400 kN (45 ton)

Max. Lifting Height Range5000 - 10000 mm

Beam Plate H315 mm (12.4 in)

Stage 3 Maximum Height B5500 mm (18 ft)

Stage 2 Max. Capacity (4 Legs)400 kN (45 ton)

Product LineHeavy Lifting Technology

Documents & CAD

Series documents 1· shared by this product series

BrochureML-SL-SBL-Series_Hydraulic_Gantries_EN-GBPDF·2.4 MB
