How can I get a price quote for Enerpac MCA64?

You can request a fast quote for Enerpac MCA64 from Yılsa Engineering. Reference part number CEY-7B4B2D990D67. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac MCA64 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac MCA64 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac MCA64?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

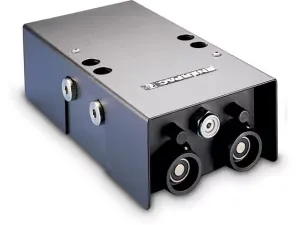

Enerpac MCA64 4-Port Auto Coupler

Enerpac MCA64; 350 bar max. operating pressure, 5–15 mm adjustable stroke, 10.8 cm³ oil capacity, 13.2 kg, 4-port auto coupler for workholding.

EnerpacMFR # MCA64SKU # CEY-7B4B2D990D67

Oil Capacity (Advance)10,8 cm³

Country of OriginUnited States

Dimension F10 - 10,5 mm

Maximum Operating Pressure350 bar

Dimension E129,3 mm

Adjustable Stroke5 - 15 mm

Have questions?Chat on WhatsApp

About This Product

MCA64 is a 4-port auto coupler from the Enerpac MCA series. It is used for automated coupling of hydraulic circuits on palletized systems. Maximum operating pressure is 350 bar and minimum operating pressure is 40 bar. Adjustable stroke is 5–15 mm, advance and retract oil capacity is 10.8 cm³ each, and maximum oil flow is 1 L/min. Required radial alignment accuracy is ±0.5 mm, mounting bolts are M8 x 90, and weight is 13.2 kg. Dimensions: A 225 mm, A1 190 mm, C 137.7 mm, D 21 mm, E 129.3 mm. The set includes the CDF6 hydraulic nozzle and the FZ2050 air blow-off fitting. The recommended alignment tool is AT1. It is used in palletized workholding systems on machine tools.

Features and Benefits

4-port auto coupler
350 bar maximum operating pressure
5–15 mm adjustable stroke
Required radial alignment accuracy of ±0.5 mm
CDF6 hydraulic nozzle and FZ2050 air blow-off fitting included in set

Enerpac MCA64

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)10,8 cm³

Country of OriginUnited States

Dimension F10 - 10,5 mm

Maximum Operating Pressure350 bar

Dimension E129,3 mm

Adjustable Stroke5 - 15 mm

Dimension D21 mm

Dimension V (Mounting Bolt Thread x Length)M8 x 90

Oil Capacity (Retract)10,8 cm³

Product TypeAuto Coupler

SeriesMCA

Included Hydraulic Nozzle ModelCDF6

Required Radial Alignment Accuracy+/-0,5 mm

Maximum Oil Flow1 l/min

Dimension A1190 mm

Minimum Operating Pressure40 bar

Product LineWorkholding Tools

Weight13.2 kg

Dimension C137,7 mm

Dimension A225 mm

Set IncludesCDF6,FZ2050

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualCouplers, AutoPDF·457 KB·English

Repair Parts SheetCouplers - AutoPDF·145 KB·English

BrochureWorkholding FMS Palletized Fixture Components, EnglishPDF·1.4 MB

CAD Files 3

3D Model
