How can I get a price quote for Enerpac MB12?

You can request a fast quote for Enerpac MB12 from Yılsa Engineering. Reference part number CEY-55221B135D4C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac MB12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac MB12 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac MB12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

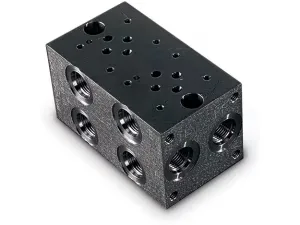

Enerpac MB12 Single Station Valve Manifold

Enerpac MB12; single station valve manifold with CETOP 3 mounting pattern and 350 bar (5,000 psi) maximum pressure.

EnerpacMFR # MB12SKU # CEY-55221B135D4C

Number of Ports1

Country of OriginUnited States

Oil Ports Cover Plate GG1/4"

Oil PortsSAE #8

Maximum Operating Pressure350 bar (5,000 psi)

Oil PortsG1/4"

Have questions?Chat on WhatsApp

About This Product

MB12 is a single station valve manifold with a CETOP 3 valve mounting pattern. It belongs to the MB - Manifold series in the Workholding product line. Maximum operating pressure is 350 bar (5,000 psi) and weight is 0.5 kg. It allows installation of VSS and VST series positive seal control valves and other D03 valves; D03 (CETOP 3) mounting patterns are supported for VSS/VST, VE, VP03 and VMMD valves. It suits applications where independent control of multiple cylinders is required. Accessories such as pressure switches and gauges can be used; each unused valve station must be sealed with an MC cover plate. Port connection sizes should be confirmed on the datasheet.

Features and Benefits

CETOP 3 valve mounting pattern, single station
350 bar (5,000 psi) maximum operating pressure
Accepts VSS/VST positive seal control valves and other D03 valves
Suited to independent control of multiple cylinders
Compatible with accessories such as pressure switches and gauges
Unused station is sealed with an MC cover plate

Enerpac MB12

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Number of Ports1

Country of OriginUnited States

Oil Ports Cover Plate GG1/4"

Oil PortsSAE #8

Maximum Operating Pressure350 bar (5,000 psi)

Oil PortsG1/4"

Product TypeSingle Station Manifold

SeriesMB - Manifold

Product LineWorkholding Tools

Weight0,5 kg (1 lbs)

Valve Mounting PatternCETOP 3

Documents & CAD

Series documents 1· shared by this product series

BrochureWorkholding Valves, EnglishPDF·1.8 MB

Alternative Names & Search Terms

MB12MB-12MB 12Enerpac MB12Enerpac MB-12MB12 manifoldMB12 valve manifoldMB12 single station manifoldMB12 CETOP 3 manifoldEnerpac MB seriesEnerpac MB manifoldsingle station valve manifoldCETOP 3 single station manifoldCETOP 3 valve manifold350 bar valve manifoldVSS VST valve manifoldD03 CETOP 3 manifoldworkholding valve manifold
