How can I get a price quote for Enerpac MA3070?

You can request a fast quote for Enerpac MA3070 from Yılsa Engineering. Reference part number YLSNKZPYO7Z01B9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac MA3070 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac MA3070 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac MA3070?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac MA3070 Standard Clamp Arm

Enerpac MA3070; standard clamp arm for 37.8 kN swing clamps, 128 mm length, 2.3 kg.

EnerpacMFR # MA3070SKU # YLSNKZPYO7Z01B9

Dimension G59 mm

Country of OriginNetherlands

Clamp Force37,8 kN

Dimension E47 mm

Dimension K132 mm

Dimension JM8 x 1,25 mm

Have questions?Chat on WhatsApp

About This Product

MA3070 is a standard clamp arm for swing clamps with 37.8 kN capacity. It belongs to the MA series in the Workholding product line. It has an overall length (A) of 128 mm and weighs 2.3 kg. Connection dimensions include M16x2 (Q), M33 x 2 (D2) and M8 x 1.25 (J) threads and a 34.97-35.00 mm (D1) diameter. Country of origin is listed as the Netherlands. It is used together with the swing clamp to hold workpieces on fixtures and tables.

Features and Benefits

Standard arm for 37.8 kN swing clamps
128 mm overall length (A)
2.3 kg weight
M16x2, M33 x 2 and M8 x 1.25 connection threads
D1 diameter 34.97-35.00 mm

Enerpac MA3070

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G59 mm

Country of OriginNetherlands

Clamp Force37,8 kN

Dimension E47 mm

Dimension K132 mm

Dimension JM8 x 1,25 mm

Dimension K217 mm

Product TypeStandard Clamp Arm

SeriesMA

Product LineWorkholding Tools

Weight2,3 kg

Dimension C35,0 mm

Dimension QM16x2 mm

Dimension D134,97-35,00 mm

Dimension A128,0 mm

Dimension P70 mm

Dimension D2M33 x 2 mm

Documents & CAD

Series documents 1· shared by this product series

BrochureWorkholding Collet-Lok® Cylinders, EnglishPDF·3.7 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

MA3070MA-3070MA 3070Enerpac MA3070Enerpac MA-3070MA3070 clamp armMA3070 standard clamp armMA3070 swing clamp armEnerpac MA seriesEnerpac MA clamp arm37.8 kN swing clamp arm37.8 kN standard clamp armstandard arm for swing clampswing clamp standard armworkholding clamp armfixture clamp arm

Cookie Notice

Enerpac MA3070 Standard Clamp Arm

About This Product

Features and Benefits

Enerpac MA3070

Specifications

Documents & CAD

Series documents 1· shared by this product series

CAD Files 3

Related Products

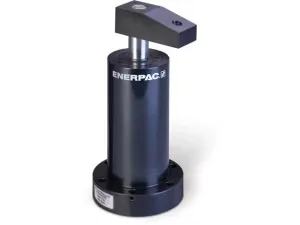

Enerpac MPFL300V 37.8 kN Swing Cylinder
