How can I get a price quote for Enerpac LUCS192?

You can request a fast quote for Enerpac LUCS192 from Yılsa Engineering. Reference part number CEY-55221B11C061. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac LUCS192 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac LUCS192 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac LUCS192?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

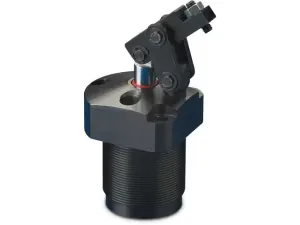

Enerpac LUCS192 18.7 kN Link Clamp

Enerpac LUCS192; 18.7 kN clamping force, 34.5 mm stroke, M90 x 2 thread, 1/4 BSPP port hydraulic link clamp for workholding.

EnerpacMFR # LUCS192SKU # CEY-55221B11C061

Country of OriginUnited States

Dimension F0,8 mm

Dimension V10,4 mm

Dimension U282,0 mm

Dimension U1101,1 mm

ApplicationsClamp

Have questions?Chat on WhatsApp

About This Product

The LUCS192 is a hydraulic link clamp from the Enerpac LU series of workholding products. It provides 18.7 kN of clamping force and a 34.5 mm stroke, with a cylinder effective area of 6.39 cm² and an oil capacity of 22.67 cm³. The body thread is M90 x 2, the port is 1/4 BSPP, and the weight is 6.9 kg. The standard clamp arm is LCAS192 and the long clamp arm is LCAL192. Arms are ordered separately. It is used in machining and fixture applications that require part clamping.

Features and Benefits

18.7 kN clamping force
34.5 mm stroke
M90 x 2 thread and 1/4 BSPP port
Standard arm LCAS192, long arm LCAL192
6.9 kg weight, 22.67 cm³ oil capacity

Enerpac LUCS192

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Dimension F0,8 mm

Dimension V10,4 mm

Dimension U282,0 mm

Dimension U1101,1 mm

ApplicationsClamp

Dimension DM90 x 2 mm

Dimension J87,9 mm

Product TypeLink Clamp

Dimension Y58,9

Dimension H15,0 mm

Dimension X49,8 mm

SeriesLU

Dimension C139,9 mm

Oil Capacity22,67 cm³

Dimension N41,4 mm

Dimension C258,4 mm

Cylinder Effective Area6,39 cm²

Dimension C393,0 mm

Standard Clamp ArmLCAS192

Stroke34.5 mm

Dimension S18,1 mm

Product LineWorkholding Tools

Weight6,9 kg

Port Size1/4" BSPP

Dimension R51,1 mm

Dimension D1119,1 mm

Dimension P15,0 mm

Dimension E28.3 °

Dimension D2102,1 mm

Clamping Force18,7 kN

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualLink ClampPDF·239 KB·English

Repair Parts Sheetlink ClampPDF·95 KB·English

BrochureWorkholding Link Clamps, EnglishPDF·435 KB

CAD Files 5

3D Model

Alternative Names & Search Terms

LUCS192LUCS-192LUCS 192Enerpac LUCS192Enerpac LUCS-192Enerpac LUCS 192LUCS192 link clampLUCS-192 link clampLUCS192 hydraulic clampEnerpac LU seriesEnerpac LU series link clampEnerpac LUCS serieshydraulic link clamphydraulic workholding clamp18.7 kN hydraulic clamplink clamp 34.5 mm strokeM90 x 2 thread hydraulic clamp1/4 BSPP port hydraulic clampEnerpac workholding clamplink clamp with LCAS192 armlink clamp with LCAL192 long armEnerpac hydraulic workholding
