Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

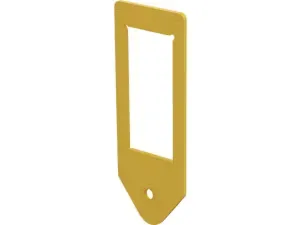

Enerpac LLSL60 125 kN Lifting Anchor

Enerpac LLSL60; lifting anchor for SL series hydraulic gantries, 125 kN capacity per anchor, 24 kg.

EnerpacMFR # LLSL60SKU # CEY-7B4B2D99B395

Capacity per Anchor125 kN (17 ton)

Beam Hole Depth B460 mm (18.11 in)

Lug Height A895 mm

Lug Depth F15 mm

Beam Hole Width C320 mm (12.60 in)

Gantry Series CompatibilitySL

Have questions?Chat on WhatsApp

About This Product

LLSL60 is a lifting anchor from the Enerpac Heavy Lifting Technology line, designed for SL series hydraulic gantries. It is made to transfer the load to the top of the header beam. Capacity is 125 kN per anchor. The pin hole is 80 mm, the beam hole is 460 x 320 mm, anchor height is 895 mm and weight is 24 kg. The anchor can accommodate a 250 ton shackle or attach directly to the lifted load. It is used to attach rigging to the header beam and is manually spaced to the desired location.

Features and Benefits

Transfers the load to the top of the header beam
125 kN capacity per anchor
Accommodates a 250 ton shackle or attaches directly to the lifted load
Used to attach rigging to the header beam
Manually spaced to the desired location
Compatible with SL series gantries, 24 kg

Enerpac LLSL60

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Capacity per Anchor125 kN (17 ton)

Beam Hole Depth B460 mm (18.11 in)

Lug Height A895 mm

Lug Depth F15 mm

Beam Hole Width C320 mm (12.60 in)

Gantry Series CompatibilitySL

Lug Width D460 mm

Anchor Width D18.11 in

Product TypeLifting Anchor

SeriesLLSL

Pin Hole E80 mm (3.15 in)

Anchor Height A35.24 in

Anchor Depth F0.59 in

Product LineHeavy Lifting Technology

Weight24 kg (53 lbs)
