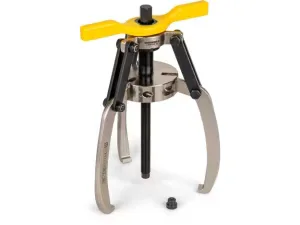

Enerpac LGM308 8 ton 3-Jaw Puller

Enerpac LGM308; 8 ton (71.2 kN) capacity, 260 mm max spread, 177 mm reach, 3-jaw mechanical lock-grip puller.

EnerpacMFR # LGM308SKU # CEY-55221B12DA1B

Country of OriginSpain

Dimension B (Min.)1.38 in

Dimension C134 mm (5.28 in)

Power SourceMechanical

Capacity71,2 kN (8 ton)

Dimension B260 mm (10.24 in)

Have questions?Chat on WhatsApp

About This Product

The LGM308 is a mechanical lock-grip puller from the LGM series. Capacity is 8 ton (71.2 kN), minimum spread 35 mm, maximum spread 260 mm and maximum reach 177 mm. Maximum torque is 134 Nm and weight is 6.9 kg. The self-centering closing system moves the jaws simultaneously, so a single operator can mount the puller and perform the job. Country of origin is Spain. It is used to pull small to medium-size wheels, sprockets, bearings and similar shaft-mounted parts.

Features and Benefits

Lock-on jaws provide a secure grip and easy operation
Synchronous jaw movement lets a single operator perform the pull
Quick and easy mounting on a wide range of applications
35–260 mm spread range and 177 mm reach
134 Nm maximum torque, 6.9 kg weight

Enerpac LGM308

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginSpain

Dimension B (Min.)1.38 in

Dimension C134 mm (5.28 in)

Power SourceMechanical

Capacity71,2 kN (8 ton)

Dimension B260 mm (10.24 in)

ApplicationsPull

Maximum Reach177 mm (6.97 in)

Minimum Spread35 mm (1.38 in)

Product TypeLock-Grip Puller Mechanical

Maximum Torque134 Nm (99 ft-lbs)

Dimension B (Max.)10.24 in

SeriesLGM

Puller TypeMechanical 2 Jaw Puller

Number of Jaws3

Model Type8 ton, Mechanical 2 Jaw Puller, 10.24 inch Max Spread

Dimension A177 mm (6.97 in)

Product LineIndustrial Tools

Weight6,9 kg (15.18 lbs)

Maximum Spread260 mm (10.24 in)

Set IncludesSGM0704

Documents & CAD

For this product 2

Instruction ManualMechanical Lock-Grip Pullers, LGM SeriesPDF·5.4 MB

Repair Parts SheetMechanical Lock Grip Pullers, LGM SeriesPDF·555 KB·English

Series documents 3· shared by this product series

CertificateEC2B-LGPULLERS_RevD_Oct2022PDF·427 KB

BrochureHydraulic_Mechanical_Pullers_EN-AUPDF·3.9 MB

BrochureLGM-Series Mechanical Lock-Grip Pullers; EnglishPDF·304 KB
