How can I get a price quote for Enerpac LGM204?

You can request a fast quote for Enerpac LGM204 from Yılsa Engineering. Reference part number CEY-937FC7807B4C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac LGM204 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac LGM204 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac LGM204?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

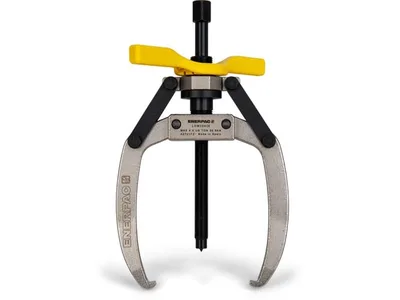

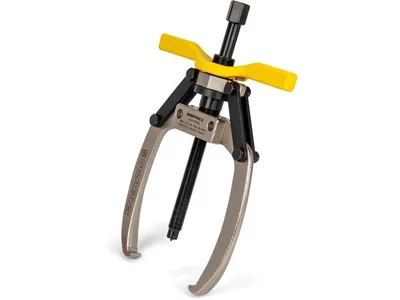

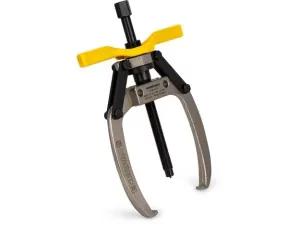

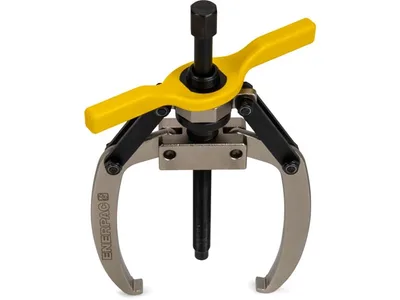

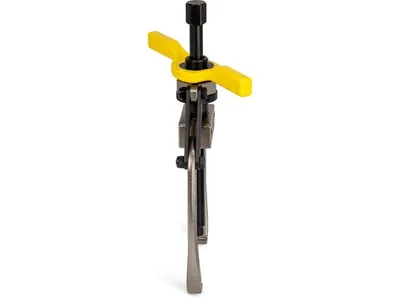

Enerpac LGM204 4 ton 2-jaw mechanical puller

Enerpac LGM204; 4 ton, 2-jaw, 186 mm max spread, 142 mm max reach, mechanical lock-grip puller.

EnerpacMFR # LGM204SKU # CEY-937FC7807B4C

Maximum Reach142 mm (5.59 in)

Maximum Spread186 mm (7.32 in)

Power SourceMechanical

Number of Jaws2

Weight2,5 kg (5.5 lbs)

Capacity35,6 kN (4 ton)

Have questions?Chat on WhatsApp

About This Product

The LGM204 is a 4 ton, 2-jaw mechanical lock-grip puller from the LGM series. It has a 186 mm max spread and 142 mm max reach, and weighs 2.5 kg. Its self-centering closing system moves the jaws simultaneously. Turning the handle locks the jaws onto the part, and turning the spindle pulls it free. It is used to remove small to medium-size wheels, sprockets, bearings and similar shaft-mounted parts.

Features and Benefits

4 ton pulling capacity
2-jaw design; 186 mm max spread, 142 mm max reach
Self-centering system with simultaneous jaw movement
Lock-on jaws provide a secure grip
Single-operator use; weight 2.5 kg

Enerpac LGM204

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Reach142 mm (5.59 in)

Maximum Spread186 mm (7.32 in)

Power SourceMechanical

Number of Jaws2

Weight2,5 kg (5.5 lbs)

Capacity35,6 kN (4 ton)

Country of OriginSpain

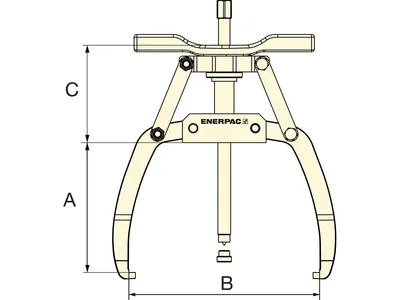

Dimension B (Min.)1.18 in

Dimension C90 mm (3.54 in)

Dimension B186 mm (7.32 in)

ApplicationsPull

Minimum Spread30 mm (1.18 in)

Product TypeLock-Grip Puller Mechanical

Maximum Torque68 Nm (50 ft-lbs)

Dimension B (Max.)7.32 in

SeriesLGM

Puller TypeMechanical 2 Jaw Puller

Model Type4 ton, Mechanical 2 Jaw Puller, 7.32 inch Max Spread

Dimension A142 mm (5.59 in)

Product LineIndustrial Tools

Set IncludesSGM0404

Documents & CAD

For this product 1

Repair Parts SheetMechanical Lock Grip Pullers, LGM SeriesPDF·555 KB·English

Series documents 4· shared by this product series

Instruction ManualMechanical Lock-Grip Pullers, LGM SeriesPDF·5.4 MB

CertificateEC2B-LGPULLERS_RevD_Oct2022PDF·427 KB

BrochureHydraulic_Mechanical_Pullers_EN-AUPDF·3.9 MB

BrochureLGM-Series Mechanical Lock-Grip Pullers; EnglishPDF·304 KB

CAD Files 3

3D Model
