How can I get a price quote for Enerpac LCAS32?

You can request a fast quote for Enerpac LCAS32 from Yılsa Engineering. Reference part number YLSOFUQ0DWS2RDN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac LCAS32 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac LCAS32 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac LCAS32?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

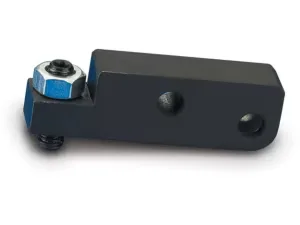

Enerpac LCAS32 3 kN Clamp Arm

Enerpac LCAS32; standard clamp arm for link clamps up to 3 kN capacity, Q dimension M6 x 1.0, LCAS series workholding accessory.

EnerpacMFR # LCAS32SKU # YLSOFUQ0DWS2RDN

Dimension G11,85 mm (0.47 in)

Dimension E16 mm (0.63 in)

Country of OriginUnited States

Clamp Force3 kN

Dimension J26,02-6,07 mm (.237-.239 in)

Dimension F8 mm (0.31 in)

Have questions?Chat on WhatsApp

About This Product

LCAS32 is a standard clamp arm designed for Enerpac link clamps with up to 3 kN capacity. It is part of the LCAS series and is used in workholding applications. Capacity is 3 kN and the Q dimension is M6 x 1.0. The standard arm includes a set screw and lock nut. Country of origin is the United States. See the datasheet for full dimensions. It is used in machining and fixture applications to hold the workpiece with a link clamp. Enerpac offers standard or extended arm lengths; the long arm is machinable.

Features and Benefits

Standard arm for link clamps up to 3 kN capacity
Set screw and lock nut included
Available in standard or extended length
Long arm is machinable for custom arms
Q dimension M6 x 1.0

Enerpac LCAS32

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G11,85 mm (0.47 in)

Dimension E16 mm (0.63 in)

Country of OriginUnited States

Clamp Force3 kN

Dimension J26,02-6,07 mm (.237-.239 in)

Dimension F8 mm (0.31 in)

Dimension D6 mm (0.24 in)

Dimension B13,0 mm (0.51 in)

Dimension K13 mm (0.51 in)

Dimension L123,5 mm (0.93 in)

Dimension L218,5 mm (0.73 in)

Dimension J16,02-6,07 mm (.237-.239 in)

Product TypeClamp Arm - Standard

SeriesLCAS

Dimension C16 mm (0.24 in)

Dimension N3 mm (0.12 in)

Dimension C29,5 mm (0.37 in)

Dimension A54,0 mm (2.13 in)

Dimension QM6 x 1,0 mm

Product LineWorkholding Tools

Dimension P13 mm (0.51 in)

Clamp Series CompatibilityLU

Documents & CAD

Series documents 1· shared by this product series

BrochureWorkholding Link Clamps, EnglishPDF·435 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

LCAS32LCAS-32LCAS 32Enerpac LCAS32Enerpac LCAS-32Enerpac LCAS 32LCAS32 clamp armLCAS32 standard armEnerpac LCAS seriesLCAS series standard clamp arm3 kN link clamp arm3 kN standard clamp armstandard arm for link clampsworkholding clamp armEnerpac link clamp armEnerpac workholding accessoryM6 x 1.0 clamp arm
