How can I get a price quote for Enerpac LCAS282?

You can request a fast quote for Enerpac LCAS282 from Yılsa Engineering. Reference part number CEY-55221B1176BA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac LCAS282 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac LCAS282 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac LCAS282?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

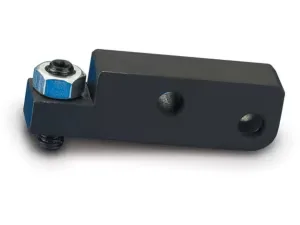

Enerpac LCAS282 28 kN Clamp Arm

Enerpac LCAS282; standard clamp arm for link clamps up to 28 kN capacity, Q dimension M20 x 2.5, LCAS series workholding accessory.

EnerpacMFR # LCAS282SKU # CEY-55221B1176BA

Dimension G31,85 mm (1.25 in)

Dimension E45 mm (1.77 in)

Country of OriginUnited States

Clamp Force28 kN

Dimension J215,05-15,10 mm (.593-.595 in)

Dimension F27 mm (1.06 in)

Have questions?Chat on WhatsApp

About This Product

LCAS282 is a standard clamp arm designed for Enerpac link clamps with up to 28 kN capacity. It is part of the LCAS series and is used in workholding applications. Capacity is 28 kN and the Q dimension is M20 x 2.5. The standard arm includes a set screw and lock nut. Country of origin is the United States. See the datasheet for full dimensions. It is used in machining and fixture applications to hold the workpiece with a link clamp. Enerpac offers standard or extended arm lengths; the long arm is machinable.

Features and Benefits

Standard arm for link clamps up to 28 kN capacity
Set screw and lock nut included
Available in standard or extended length
Long arm is machinable for custom arms
Q dimension M20 x 2.5

Enerpac LCAS282

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G31,85 mm (1.25 in)

Dimension E45 mm (1.77 in)

Country of OriginUnited States

Clamp Force28 kN

Dimension J215,05-15,10 mm (.593-.595 in)

Dimension F27 mm (1.06 in)

Dimension D16 mm (0.63 in)

Dimension B30,5 mm (1.20 in)

Dimension K28 mm (1.10 in)

Dimension L151,0 mm (2.01 in)

Dimension L244,0 mm (1.73 in)

Dimension J118,05-18,10 mm (.711-.713 in)

Product TypeClamp Arm - Standard

SeriesLCAS

Dimension C113 mm (0.51 in)

Dimension N8 mm (0.31 in)

Dimension C229,0 mm (1.14 in)

Dimension A125,0 mm (4.92 in)

Dimension QM20 x 2,5 mm

Product LineWorkholding Tools

Dimension P38 mm (1.50 in)

Clamp Series CompatibilityLU

Documents & CAD

Series documents 1· shared by this product series

BrochureWorkholding Link Clamps, EnglishPDF·435 KB

CAD Files 3

3D Model
