How can I get a price quote for Enerpac LCAL122?

You can request a fast quote for Enerpac LCAL122 from Yılsa Engineering. Reference part number YLSDS99C2VAWQ41. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac LCAL122 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac LCAL122 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac LCAL122?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

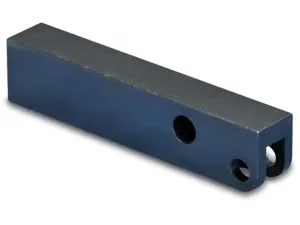

Enerpac LCAL122 Long Clamp Arm 12 kN

Enerpac LCAL122; 110 mm long clamp arm for 12 kN capacity LU series link clamps.

EnerpacMFR # LCAL122SKU # YLSDS99C2VAWQ41

Dimension G21,85 mm (0.86 in)

Dimension E32 mm (1.26 in)

Country of OriginUnited States

Clamp Force12 kN

Dimension J210,05-10,10 mm (.396-.398 in)

Dimension D11 mm (0.43 in)

Have questions?Chat on WhatsApp

About This Product

LCAL122 is a long clamp arm for 12 kN capacity link clamps. It is compatible with the LU series and has an overall length of 110 mm (4.33 in). The standard arm includes a set screw and lock nut. The long arm is machinable, so a custom arm can be made to suit specific applications. It is used in workholding applications to extend clamp reach where the standard arm is not sufficient.

Features and Benefits

Long arm for 12 kN capacity link clamps
Compatible with LU series
Set screw and lock nut included
Machinable; custom arms can be made for specific applications
Available in standard or extended length

Enerpac LCAL122

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G21,85 mm (0.86 in)

Dimension E32 mm (1.26 in)

Country of OriginUnited States

Clamp Force12 kN

Dimension J210,05-10,10 mm (.396-.398 in)

Dimension D11 mm (0.43 in)

Dimension B22,0 mm (0.87 in)

Dimension K20 mm (0.79 in)

Dimension L230,0 mm (1.18 in)

Dimension J112,05-12,10 mm (.474-.476 in)

Product TypeClamp Arm - Long

SeriesLCAL

Dimension C110 mm (0.39 in)

Dimension N5,5 mm (0.22 in)

Dimension C219,50 mm (0.77 in)

Dimension A110 mm (4.33 in)

Product LineWorkholding Tools

Clamp Series CompatibilityLU
