How can I get a price quote for Enerpac IPE2505A?

You can request a fast quote for Enerpac IPE2505A from Yılsa Engineering. Reference part number YLSNFBJYE6O9XSH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac IPE2505A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac IPE2505A genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac IPE2505A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

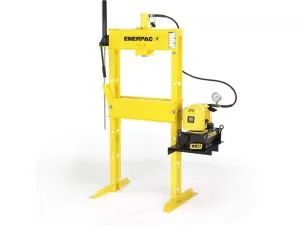

Enerpac IPE2505A 25 Ton H-Frame Press

Enerpac IPE2505A; 25 ton (232 kN) capacity, 152 mm stroke, 700 bar, H-frame hydraulic press with RC256 single-acting cylinder and PUJ1200E electric pump.

EnerpacMFR # IPE2505ASKU # YLSNFBJYE6O9XSH

Dimension G101 mm

Dimension F1028 mm

Cylinder Stroke152 mm

Maximum Operating Pressure700 bar

Dimension E733 mm

Dimension D301 mm

Have questions?Chat on WhatsApp

About This Product

The IPE2505A is a 25 ton (232 kN) H-frame hydraulic press from the IP series. It comes with an RC256 single-acting cylinder and a PUJ1200E electric pump; the set also includes GF20B and GA2 components. Maximum operating pressure is 700 bar and cylinder stroke is 152 mm. Maximum vertical daylight is 1388 mm, minimum vertical daylight is 180 mm and maximum bed width is 725 mm. Rapid advance speed is 17 mm/s, pressing speed is 1.6 mm/s and weight is 264 kg. It is used in workshop and maintenance settings for medium-capacity pressing and fitting or removing parts.

Features and Benefits

25 ton (232 kN) pressing capacity
RC256 single-acting cylinder with 152 mm stroke
700 bar maximum operating pressure with PUJ1200E electric pump
Vertical daylight of 180–1388 mm and bed width of 725 mm
Rapid advance of 17 mm/s and pressing speed of 1.6 mm/s
Set includes PUJ1200E, RC256, GF20B and GA2

Enerpac IPE2505A

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G101 mm

Dimension F1028 mm

Cylinder Stroke152 mm

Maximum Operating Pressure700 bar

Dimension E733 mm

Dimension D301 mm

Dimension K133 mm

Maximum Vertical Daylight A1388 mm

Dimension J762 mm

Product TypeH-Frame

Dimension H336 mm

SeriesIP

Dimension N1930 mm

Dimension M855 mm

Dimension L309 mm

Press Capacity232 kN (25 ton)

Rapid Advance Speed17 mm/s

Pressing Speed1,6 mm/s

Minimum Vertical Daylight A180 mm

Product LineIndustrial Tools

Weight264 kg

Dimension C1450 mm

Maximum Bed Width725 mm

Max. Vertical Daylight1388 mm

Set IncludesPUJ1200E,RC256,GF20B,GA2

Documents & CAD

Series documents 1· shared by this product series

BrochureIP-Series_H-Frame_Presses_EN-AUPDF·328 KB
