How can I get a price quote for Enerpac IC50?

You can request a fast quote for Enerpac IC50 from Yılsa Engineering. Reference part number CEY-937FC77DA26A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac IC50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac IC50 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac IC50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

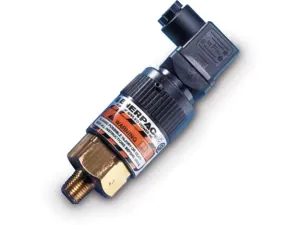

Enerpac IC50 Electrical Pressure Switch 205–515 bar

Enerpac IC50; 205–515 bar (3,000–7,500 psi) adjustable range, SAE #4 oil port electrical pressure switch rated 125 VAC at 5 A.

EnerpacMFR # IC50SKU # CEY-937FC77DA26A

Country of OriginUnited States

Maximum Operating Pressure515 bar (7,500 psi)

Deadband17 - 55 bar (250 - 800 psi)

Minimum Operating Pressure205 bar (500 psi)

Oil PortSAE #4

Adjustable Pressure Range205 - 515 bar (3,000 - 7,500 psi)

Have questions?Chat on WhatsApp

About This Product

IC50 is an IC series electrical pressure switch for workholding systems. It monitors pressure changes in the hydraulic system, and the signal can be used to control the pump or other peripheral devices. The adjustable range is 205–515 bar (3,000–7,500 psi) with a deadband of 17–55 bar (250–800 psi). Switch point repeatability is ±2% of range, and the electrical rating is 125 VAC, 50/60 Hz at 5 A. The oil port is SAE #4 and the weight is approximately 0.5 kg. It is used for pressure monitoring and control in higher-pressure workholding circuits and machine tool fixtures.

Features and Benefits

Remote-mounted electrical pressure switch
205–515 bar (3,000–7,500 psi) adjustable pressure range
Deadband 17–55 bar (250–800 psi); repeatability ±2%
125 VAC, 50/60 Hz, 5 A electrical rating
Compact design minimizes space on the fixture
Easily adjustable to system requirements

Enerpac IC50

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Maximum Operating Pressure515 bar (7,500 psi)

Deadband17 - 55 bar (250 - 800 psi)

Minimum Operating Pressure205 bar (500 psi)

Oil PortSAE #4

Adjustable Pressure Range205 - 515 bar (3,000 - 7,500 psi)

Product LineWorkholding Tools

Weight0,5 kg (1 lbs)

Switch Point Repeatability+/- 2 %

Product TypeElectrical Switch

Electrical Specification125 VAC, 50/60 Hz @ 5A

Accuracy2%

SeriesIC

Documents & CAD

For this product 2

Instruction ManualPressure SwitchPDF·1.6 MB 4 languages· in one file

Instruction ManualPressure SwitchPDF·795 KB 4 languages· in one file

Series documents 1· shared by this product series

BrochureWorkholding System Components, EnglishPDF·1.3 MB

CAD Files 3

3D Model
