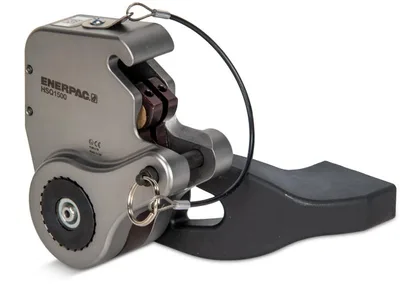

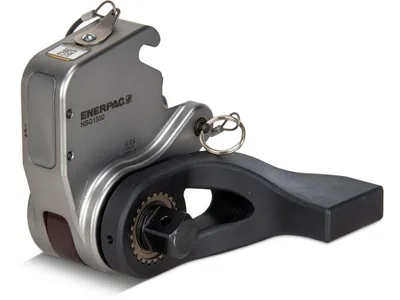

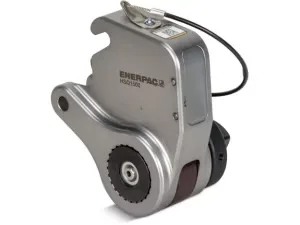

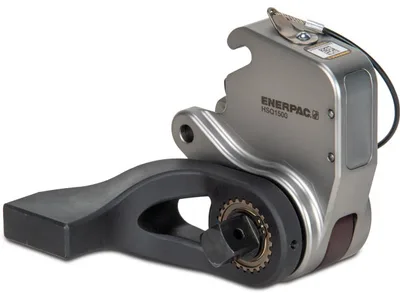

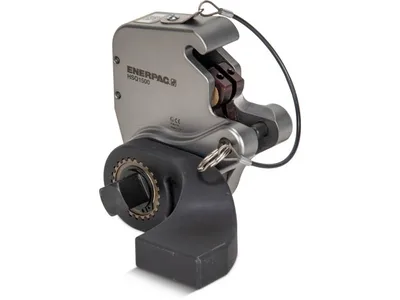

Enerpac HSQ1500 2089 Nm Torque Wrench Cassette

Enerpac HSQ1500; 2089 Nm (1541 ft-lb) maximum torque, 3/4 in square drive, hydraulic torque wrench cassette rated for 690 bar working pressure.

EnerpacMFR # HSQ1500SKU # YLSJVEK7MDLTHLE

Maximum Operating Pressure690 bar (10,000 psi)

Maximum Torque Output2089 Nm (1541 ft-lbs)

ApplicationsTorque

Product TypeSquare Drive Cassette

SeriesHSQ

Square Drive3/4 in

Have questions?Chat on WhatsApp

About This Product

HSQ1500 is an HSQ-series square drive hydraulic torque wrench cassette in the Bolting Tools line. It works with compatible HMT-series drive units. It has a 3/4 in square drive size, 2089 Nm (1541 ft-lb) maximum torque output and a maximum operating pressure of 690 bar (10,000 psi); weight is 3.7 kg. With just three fully enclosed moving parts, the cassette reduces pinch points and maintenance needs. Each cassette is supplied with a fully adjustable 360 degree in-line reaction arm. The square drive is push-button, quick-release and reversible. It is CE - ATEX declared and shipped with a calibration certificate. It is used in torque applications such as tightening and loosening bolts.

Features and Benefits

2089 Nm (1541 ft-lb) maximum torque, 3/4 in square drive
Design enclosing all moving parts minimizes pinch points
Fully adjustable 360 degree in-line reaction arm supplied as standard
Just three moving parts for reduced maintenance
Push-button, quick-release, reversible square drive
Torque accuracy of ±3% across full stroke; CE - ATEX declared, calibration certificate included

Enerpac HSQ1500

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure690 bar (10,000 psi)

Maximum Torque Output2089 Nm (1541 ft-lbs)

ApplicationsTorque

Product TypeSquare Drive Cassette

SeriesHSQ

Square Drive3/4 in

Product LineBolting Tools

Weight3,7 kg (8.16 lbs)

Documents & CAD

For this product 1

Instruction ManualHMT1500 HMT3500 HMT7500 HMT13000 Operating ManualPDF·5.4 MB

Series documents 1· shared by this product series

BrochureHMT-Series Hydraulic Torque Wrenches; EnglishPDF·1.1 MB
